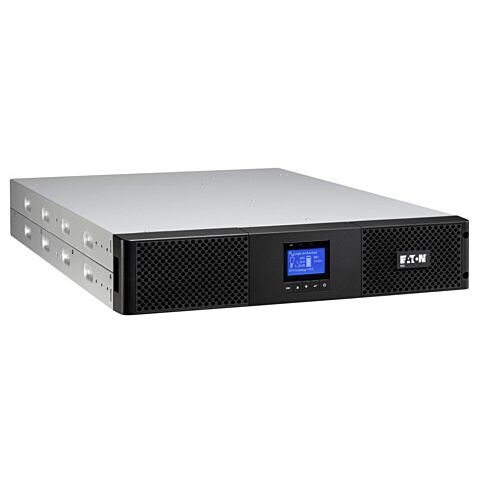

Eaton 9SX 3000i On-line UPS 3000VA 200-240V Rack2U - includes the rail kit (uses 9SXEBM96R external batteries -optional)
Specifications:
General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack
Part Number 9SX3000IR
Rating (VA/Watts) 3000/2700
Dimensions (H x W x D, mm) 86.5 x 438 x 608
Electrical Input
Connection (1) IEC-320-C20
Input Voltage Range 200-276V without derating (up to 140-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Electrical Output
Outlets (8) IEC-320-C13
(1) IEC-320-C19
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Battery
Battery Management ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM with Rack Kit
Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise <45dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM
