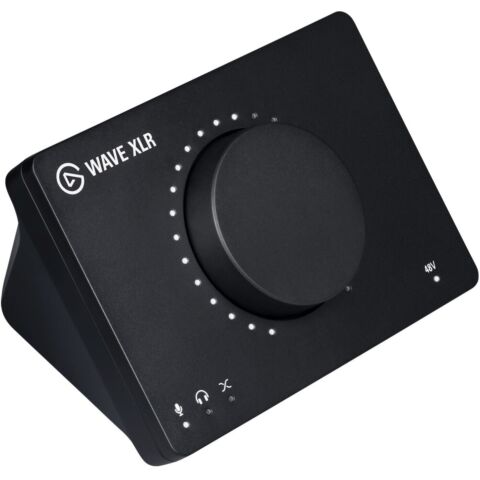

Elgato Wave XLR Input, Microphone Interface and Digital mixing solution, 24-bit Resolution, USB-C Interface
Features:
BRING YOUR MIC
You love your XLR microphone. Youll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.
ALL IN ONE, AND MORE
Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like proprietary anti-distortion technology, a capacitive mute button, direct integration with custom Wave Link mixing software, and an interchangeable faceplate.
Choose your Style
Wave XLR comes in beautiful black
PLENTY OF POWER
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.
GET AMPED WITHOUT CLIPPING
Now you dont need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak, proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream.
SWITCHABLE LOW-CUT FILTERS
Dual selectable filters let you remove low frequencies for close and distant mic positions.
THE CREATOR'S MIXER
Intuitive software custom built for content creation, Wave Link gives you ultimate control of your Twitch stream, YouTube video or podcast audio.
MULTI-CHANNEL COMMAND
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Independent input channels let you blend audio sources in real time.
*Multiple Wave mics are not supported at this time
THOUSANDS OF EFFECTS
Equip channels with third-party VST plugins like EQ, compression, or reverb. The power to customize your sound is virtually limitless.
EFFORTLESS CONTROL
Mute copyrighted music in your stream mix to avoid violations, and keep listening via your monitor mix.
STREAM READY
Add Wave Link as a master audio source in OBS Studio to take complete control of your audio workflow.
Smart Processing
Wave Link is gentle on your CPU* - no external audio processing hardware required.
*CPU load dependent on VST usage
YOUR WORKFLOW. EVOLVED.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks - anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously - all with a single tap. Its advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.
Specifications:
Frequency Response 20 Hz - 20 kHz
Dynamic Range 100 dB (120 dB Clipguard engaged)
Equivalent Input Noise (EIN) -130 dBV @ 60 dB gain
Gain Range 0 - 75 dB
Phantom Power 48 VDC, 7mA
Maximum Input Level 10 V @ 0 dB gain (Clipguard engaged)
Maximum Output Level 77 mW
Resolution 24-bit
Sample Rate 48 / 96 kHz
Interface USB-C
In the Box Wave XLR, USB-C Cable, Quick Start Guide
