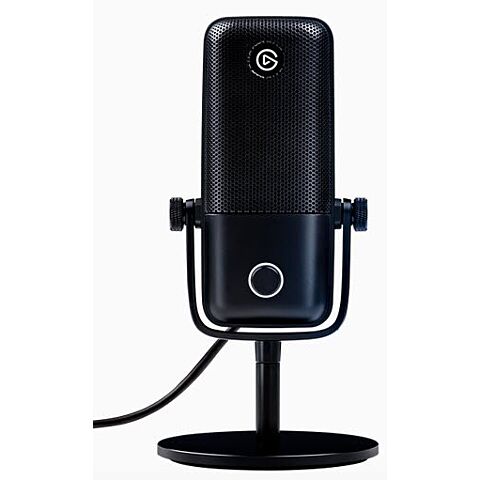

Elgato 10MAA9901 Wave:1 - premium microphone + digital mixing - tactile mute button - with anti-clipping for anti-distortion, headphone volume control dial, two independent mixes for host and audience, 24-bit / 48kHz analog to digital conversion, 3.5 mm headphone jack output - USB type-C
Overview:
Wave:1 is your gateway to microphone and digital mixing mastery, fusing plug and play convenience with broadcast-grade circuitry.
Features:
EASILY UPGRADE TO QUALITY SOUND
You’re ready to give your voice the soundstage it deserves. You need a broadcast-grade microphone that plugs directly into your setup, and a mixer to blend audio sources with ease. Meet Wave:1 — your complete solution.
Brilliant by Design
Elegant architecture. Impeccable audio. Wave:1 looks and sounds the part without stealing the show.
Control Dial
Adjust headphone volume
Push to mute input
Cardioid Polar Pattern
Fine tuned for speech
Premium Condenser Capsule
Capture verbal nuances with precision
Multilayered Noise Shield
Keeps plosive noise at bay
Superior Circuitry
24-bit / 48 kHz analog to digital conversion
Broadcast-grade detail and clarity
USB Type-C
State-of-the-art connection
High-Power Headphone Output
Crystal clear, zero-latency monitoring
Lewitt Audio Inside
Headquartered in Vienna, Austria, LEWITT Audio subjects its microphones to rigorous calibration and quality control in world-class testing facilities with seasoned sound engineers. That’s how they get their microphones into legendary recording studios, and why we’ve equipped Wave microphones with their audio technology. It’s how you get that sonic signature your audience will notice.
GET AMPED WITHOUT CLIPPING
Now you don’t need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak, proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream.
WAVE LINK: THE CREATOR'S MIXER
Intuitive software custom-built for content creation, Wave Link gives you ultimate control of your Twitch stream, YouTube video or podcast audio.
UP TO NINE CHANNELS
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Nine independent input channels let you blend audio sources in real time.
Mixing Mastery
Create two completely independent output mixes — one for you, one for your audience — and monitor each on the fly.
EFFORTLESS CONTROL
Mute copyrighted music in your stream mix to avoid violations, and keep listening via your monitor mix.
STREAM READY
Add Wave Link as a master audio source in OBS Studio to take complete control of your audio workflow.
Smart Processing
Wave Link uses less than 1% of your CPU* — no external audio processing hardware required.
YOUR WORKFLOW. EVOLVED.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks — anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously — all with a single tap. It’s advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.
Requirements:
Windows
OS - Windows 10 (64-bit)
RAM - 4GB RAM, Built-in USB 2.0 port
MAC
OS - macOS 10.15 or newer
RAM - 4GB RAM, Built-in USB 2.0 port
Specifications:
Capsule 17 mm Electret
Polar Pattern Cardioid
Resolution 24-bit
Sample Rate 48 kHz
Frequency Response 70 - 20000 Hz
Sensitivity -25dBFS (min gain), 15dBFS (max gain)
Max SPL 120dB (140dB Clipguard engaged)
Dynamic Range 95dB (115dB Clipguard engaged)
Interface USB-C
Dimensions 141 x 66 x 40 mm / 5.6 x 2.6 x 1.6 in
Weight Mic & U-Mount 245 g / 8.64 oz, Base 310 g / 10.93 oz
