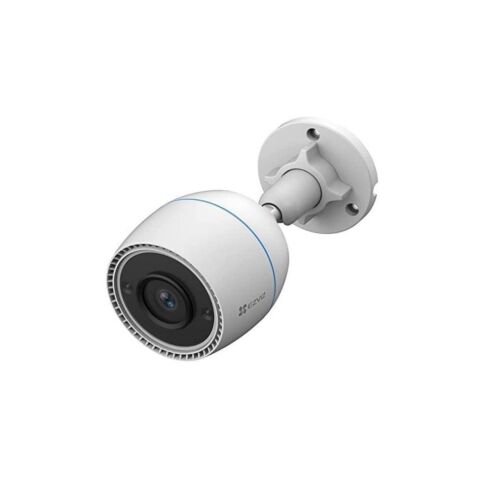

EZVIZ WI-FI SMART HOME CAMERA - C3TN
Home protection in the simplest way
If you are seeking for a simple
Durable Camera to tackle Multiple security needs at a super affordable price
The C3TN can�t be beat
The camera is well-engineered to focus on the most needed features to get the basics right
Including great video quality
Extended night vision, weatherproof housing, and more
FHD 1080p Resolution
IP67 Weatherproof Design
Motion Detection
Audio Pick-Up
IR Night Vision (Up to 30 m/98 ft)
H.265 Video Technology
Supports MicroSD Card (Up to 256 GB)
Supports EZVIZ Cloud Storage
Specifications
Camera
Image Sensor: 1/2.7 Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8 mm @ F2.0, view angle: 106 (Horizontal), 122 (Diagonal)
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.265 / H.264
Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate
Max. Resolution: 1920 × 1080
Frame Rate: Max: 30fps; Self-Adaptive during network transmission
Network
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate: 2M
Interface
Storage: Micro SD card slot (Max. 256 GB)
Wired network: RJ45 × 1(10M/100M Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
