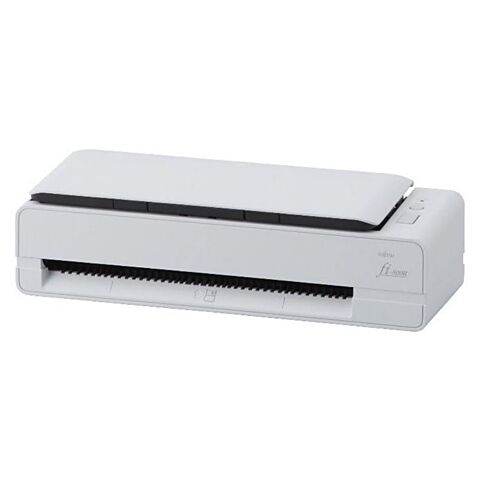

Fujitsu FI-800R A4 Duplex ADF+Single Feed Return Scan USB3.0 Scanner

Fujitsu FI-800R 40ppm/80ipm/ A4 Duplex ADF+Single Feed Return Scan USB3.0 Scanner

Overview:

The fi-800R achieves scanning speeds of 40 ppm/80 ipm with ADF and 3.5 seconds per sheet with Manual Feed (A4 portrait, color, 200/300 dpi), and is capable of scanning up to as many as 4,500 sheets a day. With its compact design, the scanner is ideal to use when space is limited, enabling better customer onboarding in spaces like reception desks and service counters. Its unique technologies assist both booklet scanning and continuous ADF document scanning with stable feeding, and reduce operator workload allowing users to provide better customer service.

Features:

Return Scan for passports and ID cards scanning
U-turn Scan with Automatic Stacking Technology for comfortable continuous scanning
Automatic Skew Correction and Active Separation structure to ensure reliable feeding
Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
PaperStream Capture Pro available as an option
Versatile scanning with space-saving design and stress-free usability
The fi-800R is a ultra compact scanner designed to fit in any limited space. Equipped with Dual Path Mechanism, while Return Scan enables robust passport and ID card scanning, U-turn Scan enables continuous scanning. The scanner automatically switches to the appropriate path depending on the location that documents are loaded so that mixed batches can be scanned without stopping to change scanning paths or software profile settings.

Return Scan for passports and ID cards
The Return Scan enables users to scan documents of up to 5 mm thick and complete start to finish in front of the scanner. Documents are ejected from where they were originally scanned in from, enabling users to scan and retrieve documents efficiently. Designed for reception-use, the device easily scans identification documents like passports, thick plastic cards, and folded documents, without a Carrier Sheet.

U-turn Scan for fast continuous scanning with the footprint of half A4 size
Equipped with ADF, the scanner scans A4-size documents continuously at a high speed of 40 ppm/80 ipm (color, 200 dpi/300 dpi). With U-turn Scan, documents are placed in from the top device to eject again from the top. The stacker automatically extends to provide neatly stacked output documents and returns to its original position once scanning has completed with Automatic Stacking Technology, so that users can easily start scanning their next batch. All these features enable the scanner’s space-saving design, allowing users to scan, organize and retrieve documents while multi-tasking with the other hand.

Fast, reliable, and hassle-free scanning for a better customer experience
The scanner has feeding mechanisms that ensure steady scanning eliminating the need to rescan documents. The Automatic Skew Correction, that corrects skewed documents one by one, prevents documents from jamming or a part of a scanned image from appearing missing, even when documents are roughly set. The Active Separation structure prevents multifeed errors by applying an adjusted optimal amount of pressure to separate documents, according to the thickness or condition of a document to be scanned. It ensures steady scanning, which is perfect for a reception desk or service counter where precise scanning is required.

Advanced software improves workflow before and after scanning
The functions of PaperStream IP and PaperStream Capture, scanner driver and capture software for fi Series respectively, improves operators’ overall productivity, by reducing the number of operations before and after scanning. For passport scanning, information such as name, passport number, and nationality, which is contained at MRZ* (Machine Readable Zone) area of the passport, can be extracted for efficient entry of customer information.

Specifications:

Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Portrait) ADF : Simplex: 40 ppm (200/300 dpi)
(Color /Grayscale /Monochrome ) Duplex: 80 ipm (200/300 dpi)
Manual Feed : 3.5 seconds (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution (Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document Size Maximum : 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum : 50.8 x 50.8 mm (2 x 2 in.)
Long Page Scanning : 5,588 mm (220 in.)
Paper Weight (Thickness) ADF : Paper: 40 to 127 g/m² (11 to 34 lb)
For A6 or smaller: 40 to 209 g/m² (11 to 56 lb)
For A8 or smaller: 127 to 209 g/m² (34 to 56 lb)
Manual Feed : Paper: 20 to 413 g/m² (5.4 to 110 lb)
Plastic card: 1.4mm or less
Booklet: 5mm or less
ADF Capacity 20 sheets (A4 80 g/m² or Letter 20 lb)
30 sheets (A4 52 g/m² or Letter 14 lb)
Expected Daily Volume 4,500 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode : 19 W or less
Sleep Mode : 1.7 W or less
Auto Standby (Off) Mode : 0.15 W or less
Operating Environment Temperature : 5 to 35 °C (41 to 95 °F)
Relative Humidity : 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions (W x D x H) 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)
Weight 2.0 kg (4.4 lb)
Supported Operating System Windows 10, Windows 8.1, Windows 7, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008
Included Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap, Scanner Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None / Red / Green / Blue / White / Saturation / Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal
Included Items AC cable, AC adapter, USB cable, Setup DVD-ROM
