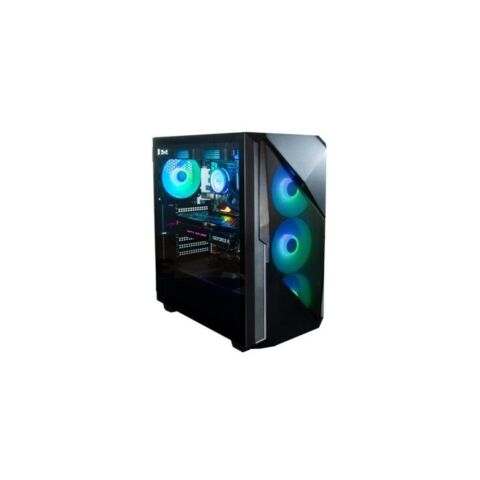

GALAX Revolution 01 Gaming Case

GALAXY REVOLUTION 01 GAMING CASE - G-CG01AGBA4AO-GXLG

GALAX PC Case (REV-01)

ATX, 4 ARGB FAN

MID Tower Case

Form Factor (Midi, Micro, Mini ITX, Full): MIDI

Chassis: SPCC: 0.45mm

PSU Form Factor: Bottom/ATX

M/B Form Factor: ATX,M-ATX

Front Panel: ABS, Mesh

Top Panel: Metal cover

Side Panel

Left: Tempered Glass

Right: Metal cover

External Drive Bay(s)

5.25" (ODD): 0

3.5": 0

Internal Drive Bay(s)

3.5" (HDD): 2

2.5" (SSD): 2

1 x 3.5HDD + 3 x 2.5SSD or 2 x 3.5HDD + 2 x 2.5SSD

I/O

Buttons : 4

USB1.1 Port(s): 0

USB2.0 Port(s): 1

USB3.0 Port(s): 1

USB3.1 Port(s): 0

HD Audio Support: 1

Card Reader (Support): 0

P-Lock: 0

RGB Controller : 1 Rainbow + PWM V2.0

Controller max. fans: 5

RGB Controller max. LED strips : 2

Remote (IR or RF): 0

Cooling Fan Support

Front: 3 x 120mm, 2 x 140mm(Fan optional)

Top: 2 x 120mm,2 x 140mm(Fan optional)

Rear: 1 x 120mm (Fan optional)

Left Side: 0

PSU Cover: 2 x120mm (Fan optional)

Water Cooling Support (Radiator Size)

Front: 120mm, 140mm, 240mm, 280mm, 360mm

Top: 120mm, 140mm, 240mm

Rear: 120mm x 1

Dust Cover: Bottom and top cover with dust filter

Slots: 7

Dimensions

Chassis: mm (L)360 x (W)210 x (H)440

Full Case (inc Fascia): mm (L)424 x (W)215 x (H)460

Carton: mm (L)506 x (W)266 x (H)465

Net Weight (Kg): kg 4.9

Gross Weight (Kg): kg 5.8

VGA Card Length: mm up to 340

CPU Cooler Height: mm 170

Cable Management Depth: mm 22
