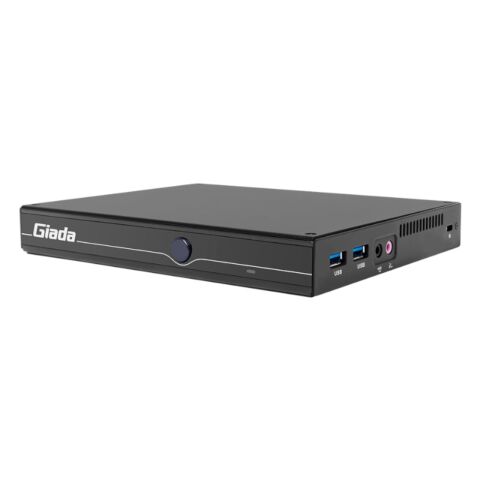

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron? N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel? UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.
FEATURES:
- Intel? Celeron? N5100 Processor
- 1 x DP, 1 x HDMI, Supporting 4K Display
- Onboard LPDDR4 4GB
- 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
- Long life cycle
- Fanless Design
SPECIFICATIONS:
- Processor:
- CPU: Intel? Celeron? N5100 processor (Fanless)
- Turbo Frequency: 2.80 GHz/2.90 GHz
- Chipset: SoC
- Processing Units: 4 Cores/4 Cores
- Memory:
- Type: Onboard LPDDR4-2666 MHz
- Size: 4GB
- Storage Supported:
- Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
- Socket 2: 1 x Full-size Mini-PCIe for MSATA
- Graphics:
- GPU: Intel? UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1,���OpenGL ES 2.0, H.264, MEPG2
- DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
- HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
- I/O:
- USB: 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1���x���MIC-IN,���1���x���AUDIO-OUT
- Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- TPM: TPM2.0
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Fanless: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 19V/2.37A
- Environment:
- Operating Temperature: 0���C ~45���C (32���F~113���F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 45���C (non-condensing)
- Certification: CE, FCC Class B
- Construction: Metal
- Fanless: Yes
- Colour: Black
- Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT?S IN THE BOX:
- Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB ? Black x1
- Wi-Fi Antenna x2
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
