Description:

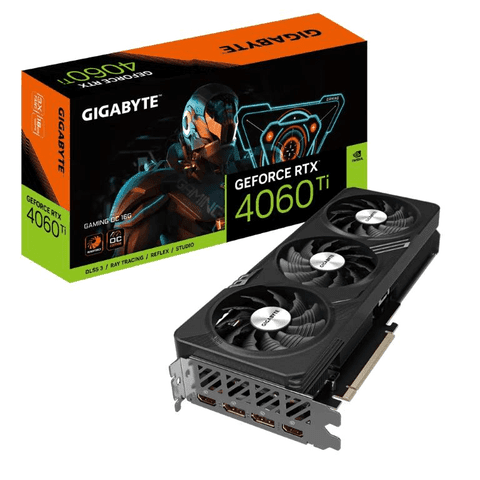

Gigabyte GAMING GeForce RTX 4060 Ti OC 16GB GDDR6 Graphics Card

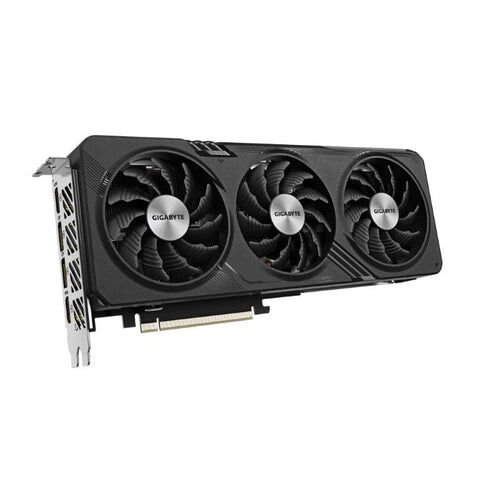

Windforce, Cooling System
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Alternate Spinning
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Unique Blade Fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Heat Pipes Direct Touch
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
Screen Cooling
Extended heatsink allows air to pass through, providing better heat dissipation.
Features:
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTXâ„¢ 4060 Ti (16GB)
Integrated with 16GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS

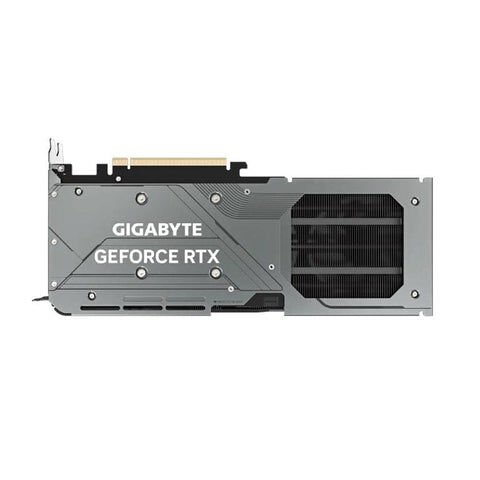

Protection metal back plate
Specifications:
Graphics Processing: GeForce RTXâ„¢ 4060 Ti (16GB)
Core Clock: 2595 MHz (Reference card: 2535 MHz)
CUDA® Cores: 4352
Memory Clock: 18 Gbps
Memory Size: 16GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 4.0
Digital max resolution: 7680 x 4320
Multi-view: 4
Card size: L=281 W=117 H=53 mm
PCB Form: ATX
DirectX: 1‎2 Ultimate
OpenGL: 4.6
Recommended PSU: 500W
Power Connectors: 8 pin*1
