Gigabyte Geforce RTX 4070 Ti Super WindForce OC 16GB GDDR6x PCI-e 4.0 x16 Graphics card, 2625 MHz Core clock, 8448 CUDA Cores, 21 Gbps Memory clock, GDDR6x Memory Type, 256 Bit Memory Bus, PCI-e 4.0 card Bus, 4 multi-view, 1x 16 pin Power connectors, 3x DisplayPort 1.4a, 1x HDMI 2.1A
Overview:
GeForce RTX 4070 Ti SUPER WINDFORCE OC 16G
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4070 Ti SUPER
Integrated with 16GB GDDR6X 256bit memory interface
WINDFORCE Cooling System
Protection metal back plate
CORE CLOCK
2625 MHz (Reference card: 2610 MHz)
Features:
Ray Tracing Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
Get next-level AI performance on GeForce RTX. Further With AI, Faster on RTX
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.

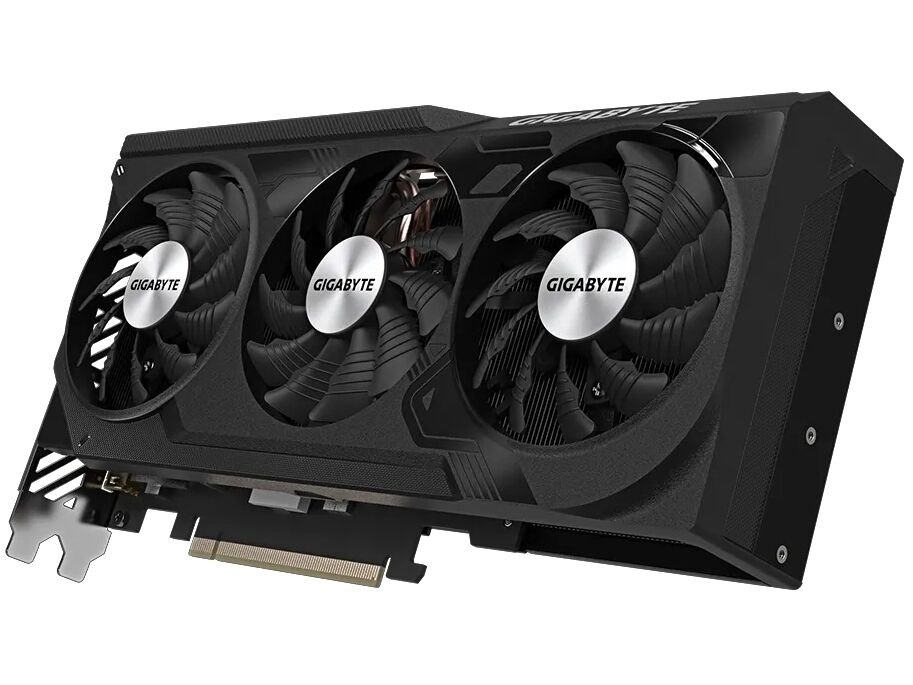

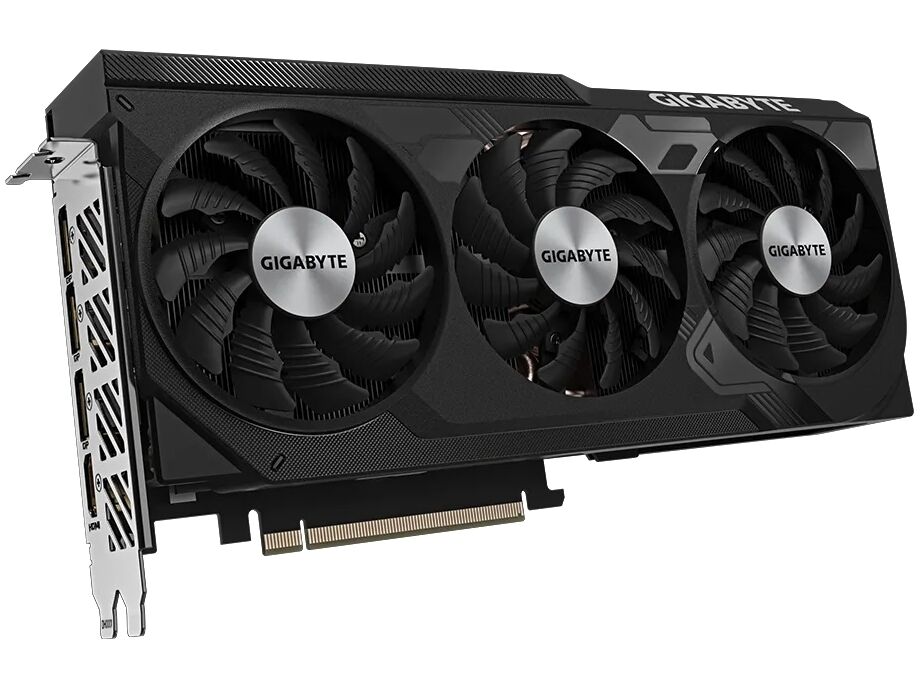

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure. 3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
BUILD STRONG ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Specifications:
Graphics Processing GeForce RTX 4070 Ti SUPER
Core Clock 2625 MHz (Reference card: 2610 MHz)
CUDA Cores 8448
Memory Clock 21 Gbps
Memory Size 16 GB
Memory Type GDDR6X
Memory Bus 256 bit
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 4
Card size L=261 W=126 H=50 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 750W
Power Connectors 16 pin *1

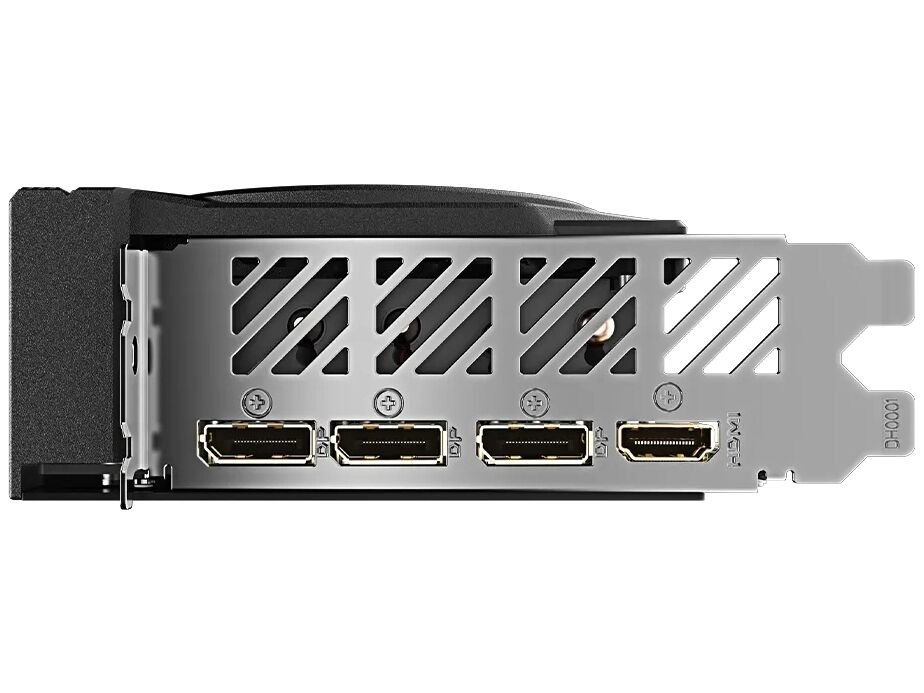

Output DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories 1. Quick guide
2. One 16-pin to two 8-pin power adaptor
