Gigabyte nVidia Geforce RTX 4070 WindForce OC 12GB GDDR6x PCI-e 4.0 x16 Graphics

Gigabyte nVidia Geforce RTX 4070 WindForce OC 12GB GDDR6x PCI-e 4.0 x16 Graphics card, 2490 MHz Core clock, 5888 CUDA cores, 21 Gbps Memory clock, 192 Bit Memory Bus, PCI-e 4.0 card Bus, 7680x4320 Digital Max Resolution, 4 multi-view, 1x 8 pin Power connectors, 3x DisplayPort 1.4, 1x HDMI 2.1A

Overview:

GeForce RTX 4070 WINDFORCE OC 12G - GV-N4070WF3OC-12GD
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
Protection metal back plate
CORE CLOCK
2490 MHz (Reference Card: 2475 MHz)
Features:

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers

Ray Tracing - Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA Studio - Your ideas, accelerated by NVIDIA Studio.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

WINDFORCE - COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure. - SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

EXCELLENT IN ESSENTIAL - PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

BUILD STRONG - ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications:

Graphics Processing GeForce RTX 4070
Core Clock 2490 MHz (Reference Card: 2475 MHz)
CUDA Cores 5888
Memory Clock 21 Gbps
Memory Size 12 GB
Memory Type GDDR6X
Memory Bus 192 bit
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 4
Card size L=261 W=126 H=50 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 650W
Power Connectors 8 pin *1

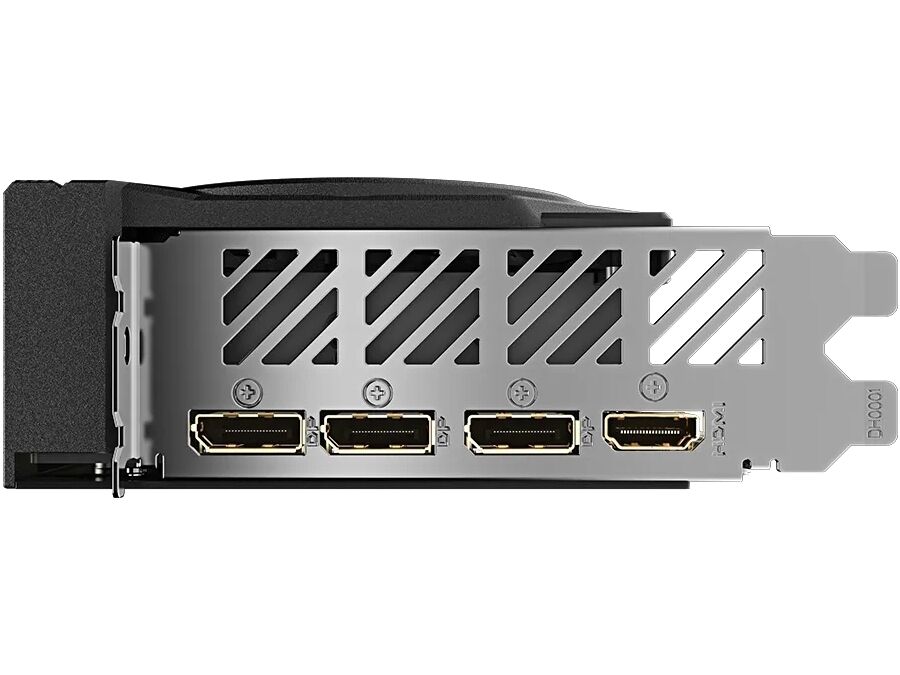

Output DisplayPort 1.4 *3
HDMI 2.1a *1
Accessories Quick guide
