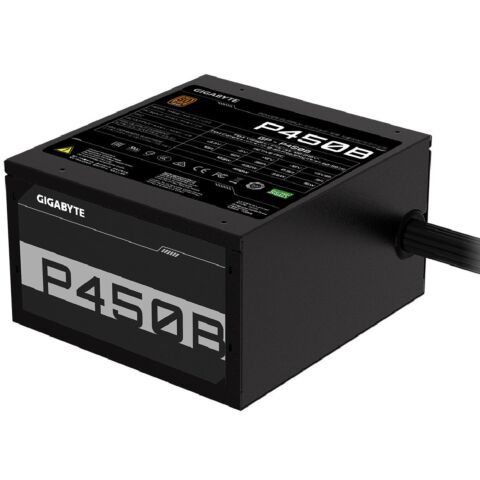

Gigabyte P450B 450W 80+ Bronze Certified Power Supply
|PSU Type||Normal Power Supply|
Gigabyte P450B 450W 80+ Bronze Certified, MB 24/20-pin x 1, CPU 4+4-pin x 1, PCI-E 6+2-pin x 2, SATA x 6, Peripheral x 3
80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Reliable Flat Cable
P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.
120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC(>0.9 typical)
Input Voltage 100-240 Vac(full range)
Input Current 8-4 A
Input Frequency 60-50 Hz
Output Capacity 450W
Dimension 150 x 140 x 86 mm
Fan Type 120 mm Hydraulic Bearing (HYB) Fan
80 PLUS Bronze
Efficiency 85% at typical load
MTBF >100, 000 hours
Power Good Signal 100-500ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
