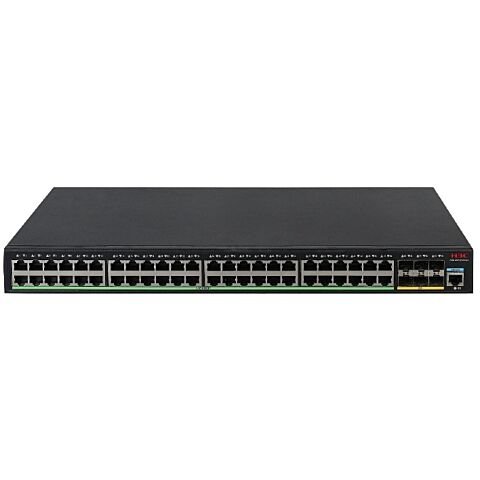

H3C S5170-ei Series 48x Gigabit and 6x SFP+ Port L2 Ethernet Switch

In stock
SKU
9801A3PT
Special Price R 15,999.00 R 13,912.17 Regular Price R 27,131.00
  • Brands - Cliqtosave Online: H3C
H3C S5170-ei Series 48x Gigabit and 6x SFP+ Port L2 Ethernet Switch
More Information
BrandH3C
Networking Device TypeGigabit Switches

Details

H3C S5170-ei Series 48x Gigabit & 6x SFP+ Port L2 Ethernet Switch, S5170-54s-ei, 48x 10/100/1000Base-T Ethernet Ports, 6x 1G/10GBase-X SFP+ Ports, 216Gbps Port switching capacity

Overview:

H3C S5170-EI Series Intelligent Gigabit Access Switches
The H3C S5170-EI switch adopts the industry-leading ASIC technology to develop a new generation of high-performance, high-port density, high-security and easy-to-install intelligent network-managed Gigabit Ethernet switches that support IPv4/IPV6 dual-stack management and forwarding. It supports static routing protocols and routing protocols such as RIP and OSPF and supports rich management and security features.

H3C S5170-EI products are mainly positioned at the access layer and aggregation layer of enterprises and campuses, meet high-density Gigabit access, fixed 10 Gigabit uplink ports, support PoE+, and build high-performance end-to-end IP networks together with other H3C products solution.

H3C S5170-EI series Ethernet switch includes the following models:
S5170-28S-EI:24x10/100/1000BASE-T Ethernet ports, 4x1G/10G BASE-X SFP+ ports.
S5170-54S-EI: 48x10/100/1000BASE-T Ethernet ports, 6x1G/10G BASE-X SFP+ ports.
S5170-28S-HPWR-EI: 24x10/100/1000BASE-T Ethernet ports (PoE+), 4x1G/10G BASE-X SFP+ ports.
S5170-54S-PWR-EI: 48x10/100/1000BASE-T Ethernet ports (PoE+), 6x1G/10G BASE-X SFP+ ports.
Features:

SmartMC (Smart Management Center)
As the network scale increases, a large number of access devices are required at the network edge, which makes the management of these devices very cumbersome. The main purpose of SmartMC is to solve the problem of centralized management of a large number of scattered network devices. It is designed to solve the switch-based operation and maintenance tasks of small enterprises. SmartMC provides unified operation, maintenance, and management of the network by built-in graphical operation platform.

SmartMC simplifies the operation, maintenance, and management of Small and Medium-sized campuses:

Smart management: includes device role selection, FTP server configuration, global configuration, and network management port configuration, etc.

Intelligent operation and maintenance: include group management, equipment, or group upgrade backup, monitoring and equipment failure replacement, etc.

Visualization: includes networking topology visualization and management, device list display, device ports display, etc.

Smart business: includes user management, etc. After network access users are created and successfully activated, these users can access the SmartMC network through the one-key-armed port.

The H3C S5170-EI series switches can be used as the management device of SmartMC. You can log in to the SmartMC network through the S5170-EI to manage the entire network in a unified manner.

H3C Intelligent Resilient Framework 2 (IRF2 )
H3C Intelligent Resilient Framework 2 (IRF 2) virtualizes multiple S5170-EI switches into one virtual switch and provides the following benefits:

Scalability : IRF 2 allows you to add devices to the IRF 2 system easily. It provides a single point of management, enables switch plug-and-play, and supports software auto-update for software synchronization from the master to the new member devices. It brings business agility with lower total cost of ownership by allowing new switches to be added to the fabric without network topology change as business grows.

High availability: The H3C proprietary routing hot backup technology ensures redundancy and backup of all information on the control and data planes and non-stop Layer 3 data forwarding in an IRF 2 fabric. It also eliminates single point of failure and ensures service continuity.

Redundancy and load balancing : The distributed link aggregation technology supports load sharing and mutual backup among multiple uplinks, which enhances the network redundancy and improves link resources usage.

Flexibility and resiliency : The switch use standard GE ports instead of specialized ports for IRF links between IRF member devices. This allows customers to assign bandwidth as needed between uplink, downlink, and IRF system connections. In addition, an S5170-EI IRF fabric can span a rack, multiple racks, or multiple campuses.

Comprehensive Security Control Policies
Endpoint Admission Defense (EAD), in conjunction with the backend system, integrates endpoint security (including anti-virus and patching) and network security (including network access control and access right control) into an interactive security system. By checking, isolating, repairing, managing, and monitoring the endpoints, this system turns reactive single-point defense to proactive, all-round defense, and dispersed management to centralized policy management. This system enhances the overall network protection against numerous security threats and improves the responsiveness to new threats.

The switch supports unified MAC address authentication, 802.1x authentication, and portal authentication; dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number; and dynamic application of user profiles or policies (such as VLAN, QoS, and ACL) on users. Using the switch in conjunction with H3C IMC, you can manage and monitor online users in real time and take prompt action on illegitimate behaviors.

The switch offers a large number of inbound and outbound ACLs and VLAN-based ACL assignment.

The switch supports Unicast Reverse Path Forwarding (uRPF), which protects a network against source spoofing attacks, preventing DoS and DDoS attacks.

High Availability
The S5170-EI switch series features multiple redundancy measures at the device and link levels, support current and voltage surge control, overheat protection, power and fan troubleshooting and alert, as well as fan speed adjustment when the temperature changes.

Apart from device level redundancy, The S5170-EI series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports IRF2 and 1: N redundancy backup as well as cross-device link aggregation which substantially increases network reliability.

Abundant QoS Features
The S5170-EI series switches offer abundant QoS features, including:

Packet filtering based on packet header fields from Layer 2 through Layer 4, including source MAC, destination MAC, source IP, destination IP, TCP/UDP port number, protocol type, and VLAN.

Flexible queuing and scheduling algorithms configured on a per-port or per-queue basis, including strict priority (SP), weighted round robin (WRR), and SP+WRR.

Committed access rate (CAR) with the minimum granularity at 16 kbps.

Port mirroring in both outbound and inbound directions for network monitoring and trouble shooting.

Professional Surge Protection Function
H3C S5170-EI series switches use professional built-in surge protection technology and support the industry-leading 10KV service port surge protection capability, which greatly reduces the damage rate of surge strikes to equipment even in harsh working environments.

Excellent Manageability
H3C S5170-EI switch series makes switch management with ease with the support of SNMPv1/v2c/v3, which can be managed by NM platforms, such as Open View and iMC. With CLI and Telnet switch management is made easier. And with SSH 2.0 encryption, switch management security is enhanced.

H3C S5170 EI switch supports BIMS protocol and can automatically download configuration files and applications from the server to achieve zero configuration startup, greatly reducing the initial configuration workload of large networks and complex networks.

Application-Driven Campus
H3C S5170S-EI series switches support H3C Application-Driven Campus (AD-Campus) Solution. AD-Campus is innovative campus network solution which aims to achieve great integration and convergence to easily reflect intent to network operation. With full lifecycle, open architecture and deep intelligence, AD-Campus is along with partner to be committed to solve existing challenges and assist customers to accelerate digital innovation and transformation.

Cloud Empowerment, Simplified Network
H3C S5170S-EI series switches support H3C Cloudnet solution. Cloudnet empowers the network through unified operation and maintenance cloud, enabling minimal network deployment, achieving minute-level deployment, zero on-site operation and maintenance, and shortening the time for customer business to go online; AI empowerment enables minimal network operation and maintenance, intelligent network optimization, fault prediction, and provides customers with an excellent user experience; Cloudnet can also empower business, and provide customers with business innovation through strong data operation capabilities. Improve the effectiveness of corporate operations.

Green Design
H3C S5170-EI series switches use the latest energy-saving chips and innovative architecture design solutions to achieve the lowest power consumption of gigabit switches, bringing users green, environmentally friendly and energy-saving new network access products and reducing user maintenance costs.

At the same time, H3C S5170-EI series switches adopt various green energy-saving designs, including auto-power-down (port automatic energy-saving). If the interface status is always down for a period, the system will automatically stop power supply to the interface and automatically enter the energy-saving mode. Support EEE energy-saving function, if the port is idle for a period, the system will set the port to the energy-saving mode, and when there is a packet to be sent and received, it will wake up the port to resume services through the monitoring code stream sent regularly to achieve the effect of energy saving. Meet the EU RoHS standard for material environmental protection and safety.

Enabling Energy Saving Features on an Ethernet Interface, which contains auto power-down and Energy Efficient Ethernet (EEE) on an Ethernet interface on the RJ-45 ports and low-power operations for industry.

Specifications:

Hardware Specifications
Feature S5170-54S-EI
Port Switching capacity(bps) 216Gbps
System Switching Capacity(bps) 598Gbps
Forwarding capacity 161Mpps
Flash 512M
SDRAM 1G
Buffer(byte) 2M
CPU 1GHz, 2Cores
Dimensions (W x D x H) 440mm x 260mm x 43.6mm
Weight ≤4.0kg
10/100/1000Base-T port 48
SFP+ port 6
Input AC:
voltage Rated voltage range: 100V~240V AC, 50/60Hz
Max voltage range: 90V~ 264V AC, 47~63HZ
Power consumption (full configuration) 53W
Number of Fan 1
MTBF(Year) 34.74
MTTR(Hour) 1
Operating temperature -5~45°C
Storage temperature -40~+70°C
Operating & storage relative humidity (noncondensing) 5%~95%
Software Specifications
Feature S5170-EI switch series
Port aggregation GE/10GE port aggregation
Dynamic aggregation
Static aggregation
Cross-device aggregation
Broadcast/Multicast/Unicast storm suppression Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
MAC address table Static MAC address
Blackhole MAC address
VLAN Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ
VLAN mapping
Voice VLAN/Private VLAN/Super VLAN
GVRP
DHCP DHCP Client
DHCP Snooping
DHCP Snooping option82
DHCP Relay
DHCP Server
DHCP auto-config
IP routing Static routing
RIPv1/v2 and RIPng
OSPFv1/v2 and OSPFv3
IS-IS
Multicast IGMP Snooping V2/V3
MLD Snooping
Multicast VLAN
PIM-SM/PIM-SSM/PIM-DM
MSDP
Layer 2 ring network protocol STP/RSTP/MSTP/PVST/PVST+
Smart Link
RRPP
G.8032 ERPS (Ethernet Ring Protection Switching)
ACL Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses
Time range-based ACL
VLAN-based ACL
Bidirectional ACL
QoS Port rate limit (receiving and transmitting)
Packet redirection
Committed access rate (CAR)
Eight output queues on each port
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
802.1p DSCP remarking
Traffic statistic Sflow
Mirroring Port mirroring
RSPAN
Security Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
Flow control
IP Source Guard
HTTPs
EAD
Management and Loading and upgrading through XModem/FTP/TFTP
maintenance Zero Touch Provisioning
Configuration through CLI, Telnet, and console port
SNMPv1/v2c/v3 and Web-based NMS
Restful
Python
Remote monitoring (RMON) alarm, event, and history recording
IMC NMS
System log, alarming based on severities, and output of debugging information
NTP
Ping, Tracert
Virtual cable test (VCT)
Device link detection protocol (DLDP)
Loopback-detection
EMC FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI-CISPR 32 CLASS A
EN 55032 CLASS
AS/NZS CISPR32 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
ETSI EN 300 386
GB/T 9254
YD/T 993
Safety CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1
AS/NZS 60950-1
FDA 21 CFR Subchapter J
GB 4943.1
