Description:

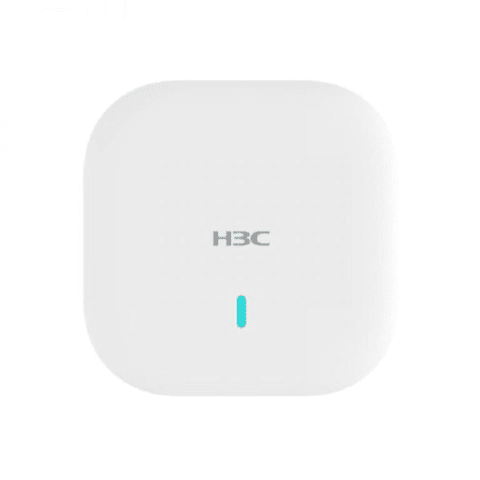

H3C WA6330 PoE Wi-Fi Access Point White
WA6330 Internal Antennas 6 Streams Triple Radio 802.11ax/ac/n Access Point
AP Working Mode: Fit/Anchor/Cloud/Fat
H3C Oasis platform CoudNet for easy maintenance and management
Transmission speed is at least 2 times faster than 802.11ac products.
Specifications:
Ethernet ports: Two（one for 100/1000M/2.5G Rj45，one for 10/100/1000M Rj45 support IoT）, support LACP.
PoE: Port1: 802.3at,802.3af
Local Power supply: 54V DC
Console port: One（RJ-45）, One USB 2.0 interface
Built-in Bluetooth: Built-in Bluetooth 4.0，Support iBeacon standard
IoT Extension: Support BLE���RFID���ZigBee,etc.
Built-in antenna
Built-in omni-directional antenna
Radio 1 : 5dBi antenna gain @ 5G
Radio 2 : 5dBi antenna gain @ 5G
Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G
Working frequencies
802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47ï½?5.725GHz; 5.15~5.35GHz
802.11ax/b/g/n : 2.4GHz-2.483GHz
Modulation technology
OFDM : BPSK@6/9Mbps���QPSK@12/18Mbps���16-QAM@24Mbps���64- QAM@48/54Mbps
DSSS : DBPSK@1Mbps���DQPSK@2Mbps���
[email protected]/11Mbps (file://dbpsk@1mbps���dqpsk@2mbps���[email protected]/11Mbps)
MIMO-OFDM （11n）: MCS 0-31
MIMO-OFDM （11ac）: MCS 0-11
MIMO-OFDM （11ax）: MCS 0-11
