Overview:

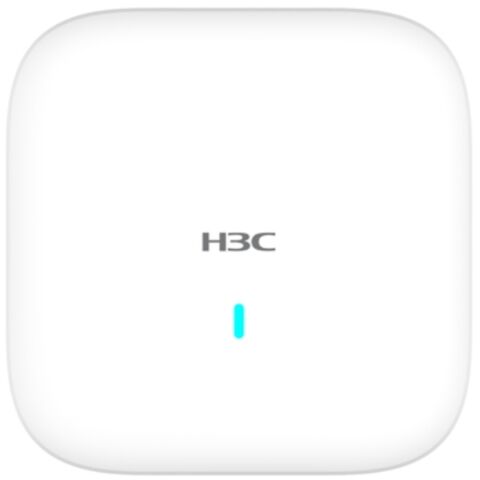

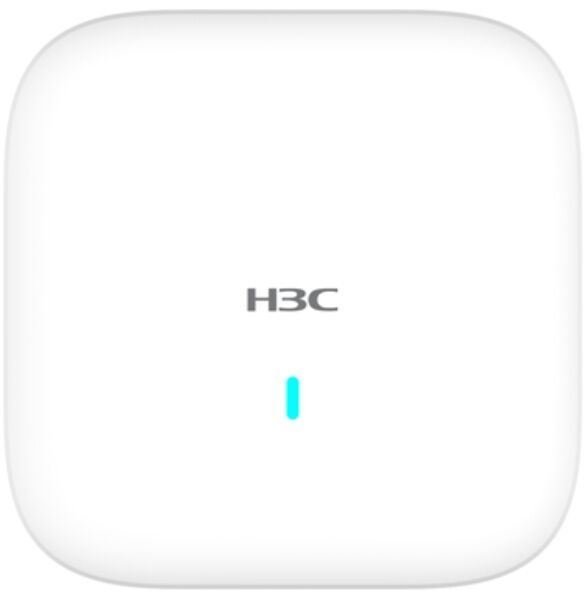

H3C WA6622 New Generation Access Point
H3C WA6622 series access points are the latest generation wireless access points developed based on 802.11ax standard. They are designed with dual-radio 802.11ax technology standard, and provide a transmission speed at least 2 times faster than 802.11ac products. This makes the series suitable for high-density access scenarios, such as hotel, stadium, and enterprise campus, and e-schoolbag applications.

With built-in antennas, WA6622 supports dual radio and multi-rate uplink ports with the max speed of 5Gbps or 10Gbps. WA6622 is compact in appearance and supports both wall mounting and ceiling mounting.

Features:

New-generation Wi-Fi standard 802.11ax (Wi-Fi 6)
802.11ac, the fifth-generation wireless technology, provides a transmit rate of up to 1733Mbps per radio. 802.11ax, the sixth-generation wireless technology, provides a maximum of eight spatial streams per 5GHz radio and up to 4.8Gbps in transmission speed. For example, the WA6622 dual-radio AP can provide up to 2.975Gbps access rate (2.4Gbps on 5GHz plus 0.575Gbps on 2.4GHz), which is suitable for all high-density access scenarios and provides better access experience.

DL/UL MU-MIMO
H3C WA6622 series AP supports DL/UL MU-MIMO technology, which is the most important feature of 802.11ax. DL/UL MU-MIMO technology allows AP to send data to multiple stations simultaneously. For example, WA6622 can communicate with up to four stations at the same time, breaking through the traditional wireless serial communication mechanism, increasing the utilization rate of wireless spectrum resources, improving the number of effective access users and access experience under high-density deployment.

Smart cloud access and optimal WLAN TCO
The WA6622 series complies with the 802.11ax standard. It works on dual radio and provides high-speed transmission that is at least 2 times faster than 802.11ac products under the same conditions. The WA6622 series is available for easy maintenance and management from the H3C Cloudnet platform. Through smart RF optimization technologies, the series provides mobile cloud access in coverage scope, access density, and operation stability, and achieves the optimal wireless network Total Cost of Ownership (TCO).

High-efficiency uplink ports with support of multiple rates
The uplink ports on the WA6622 support auto-negotiation of various transmit rates, including 100Mbps, 1000Mbps, 2.5Gbps, and 5Gbps.

Orthogonal frequency division multiple access (OFDMA)
802.11ax uses OFDMA to allow multiple users to transmit data simultaneously. OFDMA splits a channel into sub-channels, known as resource units (RUs), with specific subcarriers, and assigns RUs to different users for simultaneous transmission. OFDMA enables simultaneous multi-user transmission and reduces latency caused by channel contention.

Spatial multiplexing
802.11ax assigns a different color per BSS to help WA6622 identify co-channel interference and stop transmission in time. If a radio detects 802.11ax signals from a BSS that has the same color as the radio's BSS, it determines that co-channel interference exists and stops data transmission. This optimizes frequency reuse and improves network capacity.

Target Wake Time (TWT)
TWT improves power efficiency and reduces contention by increasing client sleep time and allowing negotiation of the times that clients can access the medium.

Built-in Bluetooth
H3C WA6622 series adopts built-in Bluetooth module which can support 10m long-distance Console function, avoid additional workload in the process of equipment installation and maintenance, reduce the difficulty of troubleshooting, and support iBeacon shaking.

Support for IoT services
For the various application in IoT era, WA6622 has been designed IoT port for H3C T300 IoT modules to provide short-distance and low-power consumption IoT services, such as BLE, RFID, ZigBee, and UWB. WA6622 can connect up to ten T300 modules by IoT port. Both this IoT port and network port support link aggregation (LACP) which increase availability and capacity.

Green design
WA6622 employs a green design that supports dynamic MIMO power saving (DMPS), enhanced automatic power save delivery (E-APSD), and smart identification of terminal network requirements. It can dynamically adjust the MIMO working mode and efficiently put terminals to sleep.

WA6622 supports green AP mode that enables single radio standby and allows for more precise power control.

WA6622 supports the innovative per-packet power control (PPC) technology, which reduces standby power consumption and improves mobile device standby time.

Local forwarding
WA6622 supports both centralized forwarding and local forwarding. With centralized forwarding, APs tunnel incoming data frames to the AC and the AC forwards the data frames. With local forwarding, APs directly forward data frames. The local forwarding mode significantly saves wired bandwidth.

IPv4 and IPv6 dual stack (Native IPv6 )
WA6622 is fully compliant with IPv6, and implements dual IPv4/IPv6 protocol stacks. It can automatically associate with an AC to provide wireless services no matter in an IPv4 or IPv6 network, so that it never runs as an information silo.

End user Admission Defense (EAD)
As one of components of H3C iMC, EAD integrates network access and endpoint security products, and helps ensure that only wireless clients that comply with enterprise security policies can access the network. When working with a security policy server, it can remind users, isolate or log them off when their systems are infected or not patched correctly. Only wireless clients that are complied with security policies are admitted. This enhances overall wireless security.

Remote probing and analysis
WA6622 can act as a remote probing and analysis sensor to monitor a WLAN, collect channel information, and report the information to the local device for further analysis. This can satisfy wireless network monitoring and maintenance requirements.

RF Optimizing Engine (ROE)
ROE, through feature- and protocol-based RF optimization, provides greater speed and QoS in middle- to high-density access and streaming media transmission scenarios. It provides features such as multi-user fairness, mixed access fairness, interference filtering, speed optimization, band navigation, multicast optimization (IPv4/IPv6 ), per-packet power control, and intelligent bandwidth guarantee.

Real Time Spectrum Guard (RTSG)
Real Time Spectrum Guard (RTSG) is the innovative H3C professional state-monitoring program for the wireless spectrum. H3C 802.11ax series AP supports the internal RF data acquisition module to achieve deeply integrated monitoring and real time spectrum protection.

The RTSG Console is integrated into the iMC (intelligent Management Center), and performs data acquisition through the CAPWAP tunnel management and Sensor AP. It can achieve 24x7 wireless signal quality monitoring, trend assessment and unauthorized interference alert. Through active probe and 2.4GHz/5GHz RF interference source (WiFi or non-WiFi) in every band, it provides a graphic representation of real-time FFT plot of the spectral density plot, spectrum diagram, the duty cycle map, event spectrum diagram, channel gain and interference gain. It can also automatically identify the source of interference, to determine the location of rogue wireless equipment, to ensure the wireless network is always in great shape. Combined with H3C iMC IAR (Intelligent Analysis Report) module, it can maintain a complete history of RF quality in the coverage area, including its trace and playback, automatically generate customized trend, compliance and audit reports.

To cater for the different supervision demands in user's wireless environment, the RTSG solution can be deployed in either Local mode or Monitor mode. In Local Mode, you can maintain normal user access and data packet forwarding without compromising effective spectrum protection.

H3C Cellular Coexistence Feature (CCF)
H3C uses built-in hardware filtering to minimize the impact of interference from 3G/4G cellular networks.

Anchor AC mode
Anchor AC mode is designed for networks of all sizes, including SMB. In Anchor AC mode, AP will serve as a virtual controller for the entire network.

Cloud-based Management
H3C cloud-managed APs were developed based on the Cloudnet platform, on which network administrators can manage the cloud-managed APs directly, for example, view cloud-managed AP status in real time and deploy configurations from the cloud to cloud-managed APs. This greatly improves network efficiency and enhances security and stability.

Intelligent load balancing
WA6622 supports session- and traffic-based load balancing. When the load of the AP reaches the upper limit, the AC rejects the association requests of new clients and directs the clients to another AP with smaller load. What sets H3C intelligent load balancing apart from existing load balancing solutions is that it starts load balancing only for clients that are in the overlapping AP coverage. This maximizes wireless network capacity.

Intelligent unified wired and wireless management
The whole series of H3C wireless products can be managed by the Wireless Service Manager (WSM) component of H3C Intelligent Management Center (IMC). WSM provides unified management of wired and wireless networks, adding wireless network management functions into existing wired network management systems.

WSM offers a simple and user-friendly management platform for wireless network administrators. It implements panel management, troubleshooting, performance monitoring, software version control, configuration management, and user access management of wireless devices. In addition, it can manage wired devices by cooperating with other components in iMC.

Specifications:

Hardware specifications
Name WA6622
Weight 0.94 kg
Dimensions (H x W x D) 43 x 210 x 210 mm (1.69 x 8.27 x 8.27 in)
Uplink Ethernet ports Port 1: 100M/1000M/2.5G/5G, RJ-45
Port 2: 100/1000M, RJ-45, IoT
PoE+ Port 1: 802.3at/af
Local power supply 54 VDC
Passive Power over Ethernet (48V) Supported
PoE power out Port 2 (GE)
Console port One (RJ-45)
USB port One
Built-in antenna Built-in omni-directional antenna
5dBi antenna [email protected]
5dBi antenna gain @5GHz
Built-in Bluetooth Supported (Support to switch RFID through software)
IoT Extension BLE, RFID, ZigBee, etc.
Working frequencies 802.11ax/ac/n/a: 5.725 to 5.850 GHz, 5.47 to 5.725 GHz, 5.15 to 5.35 GHz
802.11ax/b/g/n: 2.4 to 2.483 GHz
Modulation technology OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, [email protected]/11Mbps)
MIMO-OFDM (11n): MCS 0-31
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDM (11ax): MCS 0-11
Modulation mode 11b: DSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Maximum transmit power 2.4G: 25dBm, 5G: 30 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power granularity 1 dBm
Reset/restoration to factory default Supported
State LED Alternating flashing mode, orange/green/blue for different working states, breathing mode
Temperature Operating temperature: -10°C to +55°C (32°F to 113°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Humidity Operating: 5% to 95% (non-condensing)
Storage: 5% to 95% (non-condensing)
Protection class IP42
Overall power consumption < 25W (excluding IoT modules and USB)
Safety compliance GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
EMC GB9254, EN301 489, EN55022, FCC Part 15, RSS-210
Radio frequency certification FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC
Health FCC Bulletin OET-65C, EN 50385, IC Safety Code 6
MTBF > 250000 hours
Software specifications
Name WA6622
Compliance 802.11
Indoor, compliant with 802.11a/b/g/n/ac/ax
802.11ax Working frequencies and MIMO
5GHz, 4 x 4:4 MU-MIMO 2.4Gbps
2.4GHz, 2 x 2:2 MU-MIMO 0.575Gbps
20MHz/40MHz/80MHz bandwidth
Supported
80MHz+80MHz/160MHz bandwidth
Supported
Maximum transmission speed
2.975 Gbps
A-MPDU(TX/RX)
Supported
A-MSDU(TX/RX)
Supported
Maximum likelihood decoding (MLD)
Supported
Maximum-ratio combining (MRC)
Supported
Space-time block coding (STBC)
Supported
Low-density parity-check (LDPC)
Supported
Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)
Supported
DFS (dynamic frequency selection)
Supported
Transmit Beamforming
Supported
WLAN basics Maximum number of clients per radio
512
Maximum number of SSIDs for each radio
16
Virtual APs
32
As a best practice, configure a maximum of 5 virtual APs for each radio
Open system/shared key authentication
Supported
Broadcast probe request acknowledge control
Supported
Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA users
Supported
RTS/CTS
Supported
CTS-to-self
Supported
802.11k and 802.11v smart roaming
Supported
802.11r fast transition roaming
Supported
Hide SSID
Supported
Advanced Traffic Management
Supported
Hotspot 2.0
Supported
Restrict low rate/sticky terminals access
Supported
Channel reuse
Supported
Receiver sensitivity adjustment
Supported
Automatic channel/power/bandwidth adjustment
Supported
WLAN extension Station related
Abnormal offline check, station aging, statistics and status query
Client number limit
Supported
Link integrity check
Supported
Repeater mode
Supported
Security policy Encryption
WEP-64/128/152bit, dynamic WEP, TKIP, CCMP, WPA3, AES, EAP
Multiple triggering conditions for unicast and broadcast key update
802.11i
Supported
Authentication
802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK
H3C WX series access controllers might be required for authentication.
User isolation
Layer 2 user isolation
SSID-based user isolation
Forwarding security
Packet filtering
MAC address filtering
Broadcast storm suppression
Wireless terminal access
Wireless EAD
SSID and VLAN binding
Supported
Rogue device detection and countermeasure
Supported
Dynamic ARP Inspection (DAI)
Supported
IP Source Guard (IPSG)
Supported
WIDS/WIPS
Supported
Management frame protection (802.11w)
Supported
AAA RADIUS client
Supported
Multiple-domain authentication server
Supported
Backup authentication server
Supported
Layer 2 and Layer 3 features IP address configuration
Static IP (available only in fat AP mode)
DHCP assigned IP (Option 60)
Native IPv6
Supported
IPv6 Portal
Supported
IPv6 SAVI
Supported
ACL
IPv4/IPv6
Local forwarding
Local forwarding based on SSID and VLAN
Multicast
IGMP Snooping/MLD Snooping
DHCP Server/client/relay
Supported
NAT
Supported
Link Layer Discovery Protocol (LLDP)
Supported
SSID-based VLAN assignment
Supported
EoGRE Tunnel
Supported
QoS 802.11e
Wi-Fi Multimedia (WMM)
Priority
802.1p priority and marking on Ethernet ports
Priority mapping for wired and wireless packets
QoS policy mapping
SSID/VLAN and QoS policy mapping
Layer 2 to Layer 4 packet filtering and traffic classification
Supported
CAR
Supported
Client bandwidth management
Station-based bandwidth allocation
SSID-based bandwidth allocation
Load balancing
Traffic-based load balancing
Session-based load balancing
Frequency-based load balancing (supports dual-band)
Airtime optimization
Supported
Airtime fairness
Supported
Band navigation(5G priority)
Supported
Multicast optimization (IPv4/IPv6)
Supported
Call Admission Control (CAC)
Session-based CAC
Channel usage-based CAC
Layer 4-7 application identification
Coupled with H3C WLAN ACs, the APs can identify variety of applications and policy control can be implemented including priority adjustment, scheduling, blocking, and rate limiting on users
SVP Phone
Supported
Power saving PPC
Supported
Green AP mode
Supported
Dynamic MIMO power saving
Supported
E-APSD
Supported
WMM Power Save
Supported
Management Network management
Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Cloud/Fat mode
Management SSID
Supported
and Syslog
Supported
Remote probing and analysis
Supported
maintenance AP Working Mode
Fit/Anchor/Cloud/Fat
Mesh Mesh Link connection
Supported
Multi-hop Mesh
Supported
Wi-Fi Certified IEEE 802.11a/b/g/n/ac/ax, WMM, WPA, WPA2 and WPA3 - Enterprise, Personal (SAE), Enhanced Open (OWE), Wi-Fi Alliance
