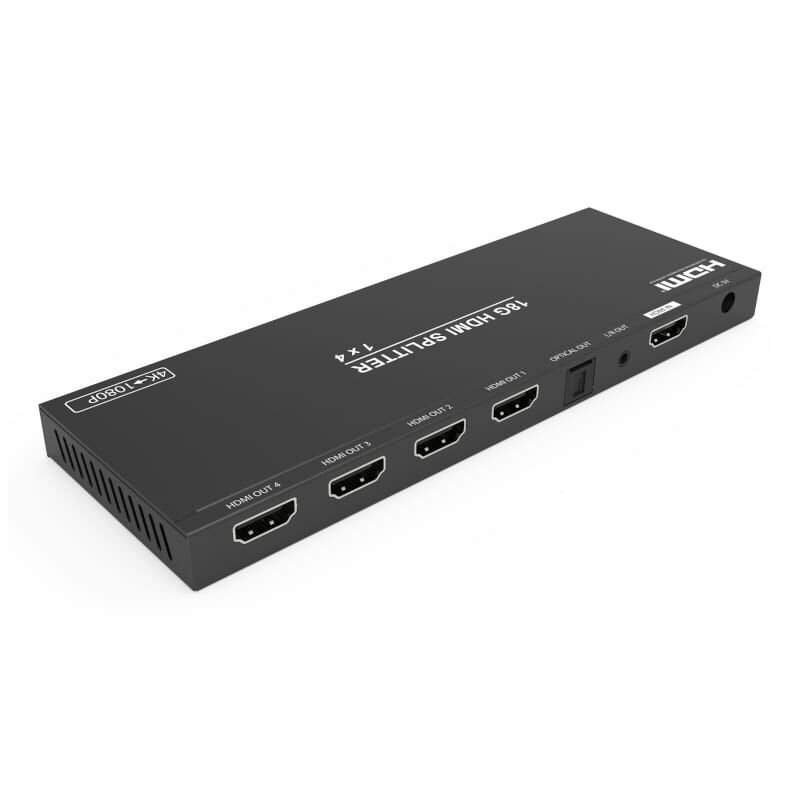

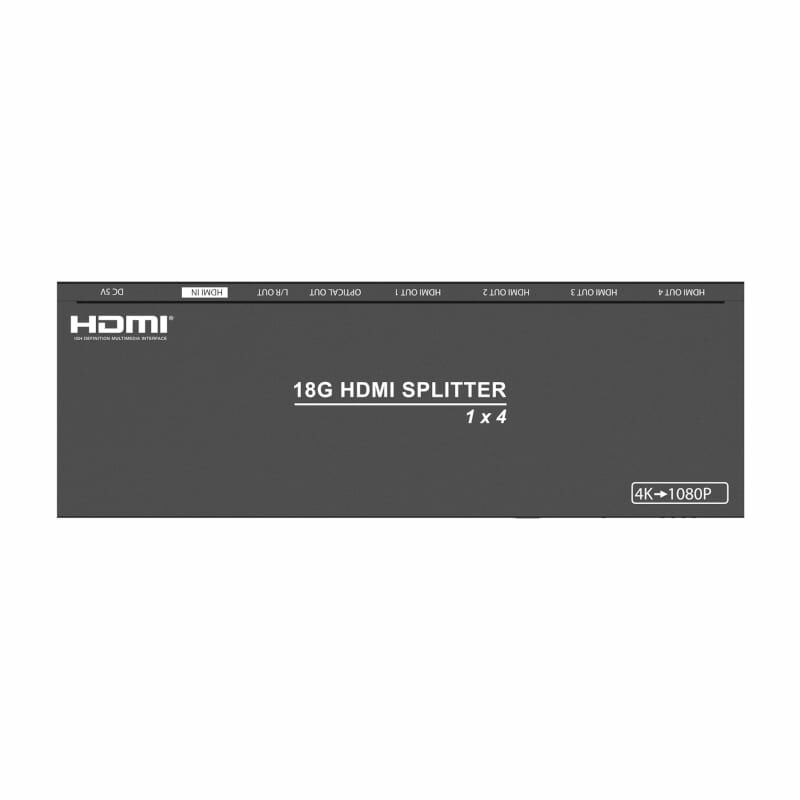

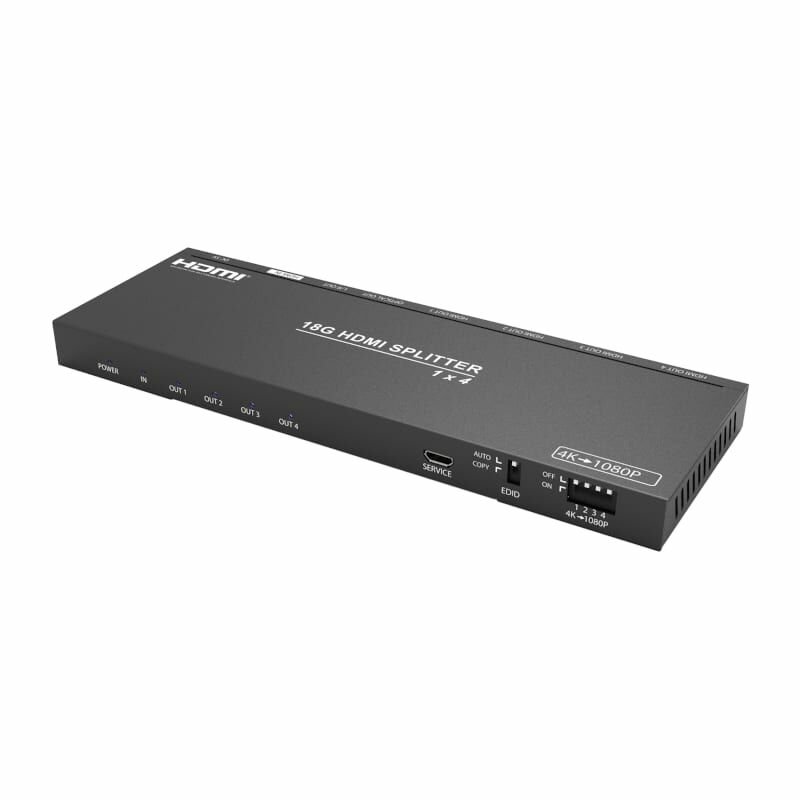

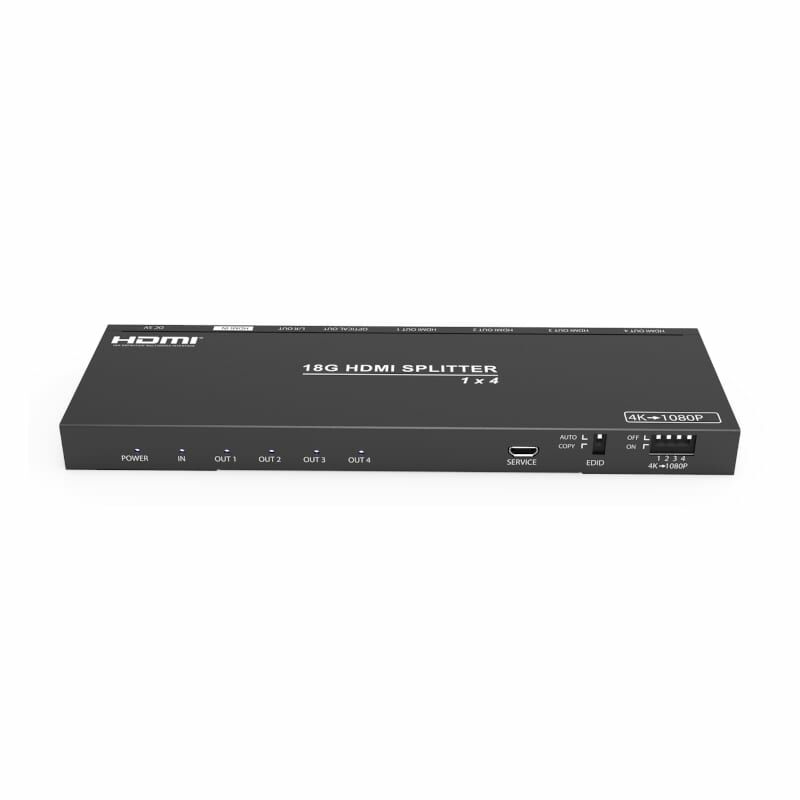

HDCVT 1x4 HDMI 2.0 Splitter with Scaler/Audio Extract EDID HDCP 2.2

The HDCVT 1-4 HDMI 2.0 Splitter with Scaler/Audio Extract can simultaneously one route HDMI source to four routes HDMI displays. It supports resolutions of up to [email protected] (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. Output supports bypass and downscaler(4K->1080P) function as well as support for analog audio PCM 2.0 and various optical audio pass-through formats.

FEATURES:

• HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
• Supports HDMI resolution the maximum up to [email protected]/60Hz (4:4:4)
• Supports digital and analog audio extract output from HDMI source.
• Supports output bypass and 4K->1080P downscaler function via dial switch on panel.
• EDID can be selected COPY and AUTO modes via dial switch on panel.
• Supports analog audio PCM 2.0.
• Supports various optical audio pass-through formats

SPECIFICATIONS:

• Housing: Metal Enclosure
• Colour: Black
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolution: 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, [email protected]/60Hz (4:4:4)
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 4K60Hz 8-bit, 1080P 12-bit
• HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• L/R Audio Formats: PCM 2.0
• Optical Audio Formats: LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
• ESD Protection Human-body Model: �8kV (Air-gap discharge) , �4kV (Contact discharge)
• Inputs: 1�HDMI Type A [19-pin female]
• Outputs: 4�HDMI Type A [19-pin female], 1�L/R Audio out [3.5mm Stereo Mini-jack], 1�Optical out [S/PDIF]

WHAT'S IN THE BOX:

• HDCVT 1-4 HDMI 2.0 Splitter with Scaler/Audio Extract - Black x1
• Power Adapter x1
• User Manual x1
