Hikvision 2MP ColorVU PIR siren audio fixed analogue Bullet Camera with 2.8
Brand | Hikvision |
---|---|
CCTV Product Types | Cameras |
Details
Hikvision 2MP ColorVU PIR siren audio fixed analogue Bullet Camera with 2.8 mm Lens, 2 MP CMOS image sensor, 1920x1080 Maximum Resolution, 24/7 Colour imaging, PAL/NTSC signal system, 2.8 mm Lens Type, M12 Lens Mount, 1080p @ 25 FPS / 30 FPS, 3D DNR/2d DNR, 11 m PIR range, 1 HD Analog Output, 1 line out, Built-in Mic, 4 programmable motion areas
Overview:

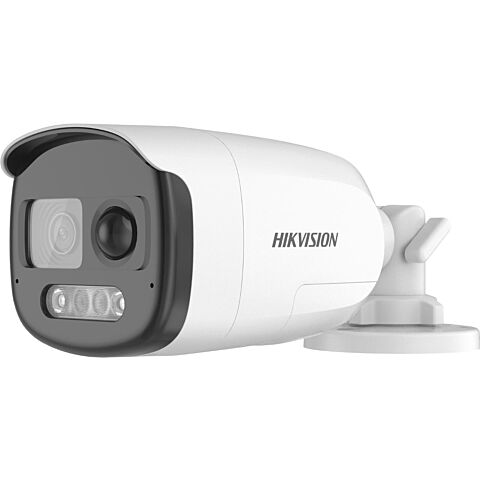

DS-2CE12DF3T-PIRXOS - 2 MP ColorVu PIR Siren Audio Fixed Bullet Camera
High quality imaging with 2 MP, 1920 x 1080 resolution
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Active strobe light and audio alarm to warn intruders off
High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
Water and dust resistant (IP67)
Specifications:
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) x 1080 (V)
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System PAL/NTSC
Slow Shutter Max. 16 times
Light Alarm Flashing Light Alarm (Red & Blue)
Lens
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Frame Rate TVI: 1080p @ 25 fps/30 fps
Day/Night Mode Color
Wide Dynamic Range (WDR) ≥130 dB
Image Enhancement WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Noise Reduction 3D DNR/2D DNR
White Balance Auto/Manual
White Light Auto/Off
AGC Yes
Supplement Detection(PIR)
PIR Range Angle: 110°, Range: 11 m
Interface
Video Output 1 HD analog output
Alarm 1 line out
Audio Built-in mic
Event
Motion Detection 4 programmable motion areas
General
Material Front cover: Metal, Main body: Plastic
Dimension 82.6 mm x 77.1 mm x 213.2 mm (3.25" x 3.04" x 8.39")
Approx. 467 g (1.03 lb.)
Operating Condition -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 11.4 W
White Light Range Up to 40 m
Approval
Protection IP67
