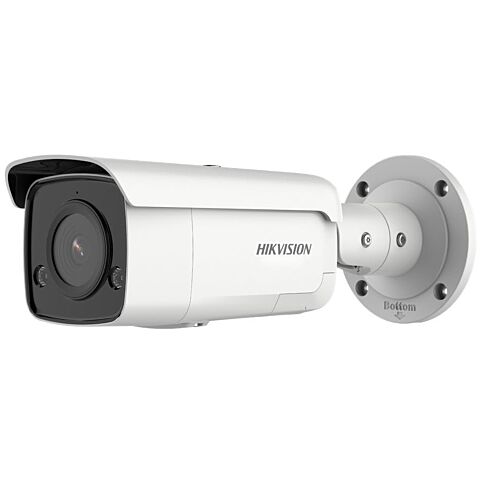

Hikvision DS-2CD2T46G2-ISU/SL 4 MP AcuSense Strobe Light and Audible Warning - DS-2CD2T46G2-ISU/SL6MM

Hikvision DS-2CD2T46G2-ISU/SL 6MM, 1/2.7" Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Powered by Darkfighter technology,Color: 0.007 lux @(F1.2, 0.012 lux @(F1.6, AGC ON), 0 lux with IR; 25fps/30fps(2688 x 1520,2304 x 1296,1920 x 1080); VCA functions; 3 streams; 3D DNR; BLC; ICR; EX

Features:

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
False alarm reduction through human and vehicle target classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)

Specifications:

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV 6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
Aperture F1.4
Lens Mount M12
Illuminator
IR Range Up to 60 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Video
Max. Resolution 2592 x 1944
Main Stream 50Hz: 20fps (2592 x 1944)
25fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20fps (2592 x 1944)
30fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for each stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3
Audio Bit Rate 64Kbps(G.711ulaw / G.711alaw) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Network Storage microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Alarm 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A)
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Intelligent (Traditional Algorithm)
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
General
Linkage Method Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
*Note: External device is required.
Web Client Language 33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset Yes
Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%; PoE: 802.3af, Class3
Power Consumption and Current 12 VDC, 0.88 A, max. 10.5 W; PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Aluminum alloy body
Camera Dimension Ø105 x 287.6 mm (Ø4.1" x 11.3")
Package Dimension 386 x 156 x 155 mm (15.2" x 7.5" x 7.1")
Camera Weight Approx. 1120 g (2.5 lb.)
With Package Weight Approx. 1634 g (3.6 lb.)
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
