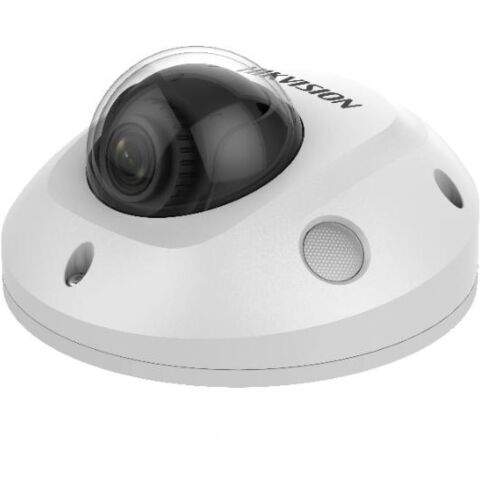

Hikvision DS-2XM6726FWD-I Mobile Network IP camera 2MP

Hikvision DS-2XM6726FWD-I Mobile Network IP camera 2MP, 1/2.8" Progressive Scan CMOS image sensor, 3D DNR, 120 dB WDR, M12 Lens Mount, 1920x1080 Maximum Resolution, H.265/H.264 main stream Video, 1x RJ45 10M/100M Ethernet Port

Overview:

Mobile Mini Dome network Camera
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology

Specifications:

Product Code DS-2XM6726FWD-I
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Angle Adjustment Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Digital Noise Reduction 3D DNR
WDR 120 dB
Day & Night IR Cut Filter
Lens
Auto-Iris No
Aperture F1.6
FOV 2.0 mm @ F1.6, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 153°, 2.8 mm @ F1.6, horizontal FOV 110°, vertical FOV 60°, diagonal FOV 130°, 4 mm @ F1.6, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°, 6 mm @ F1.6, horizontal FOV 56°, vertical FOV 31°, diagonal FOV 65°, 8 mm @ F1.6, horizontal FOV 40°, vertical FOV 22°, diagonal FOV 46°
Lens Mount M12
Focal length 2.0/2.8/4/6/8 mm fixed lens
Video
Max. Resolution 1920 x 1080
Main Stream H.265/H.264
Sub Stream H.265/H.264/MJPEG
Third Stream H.265/H.264
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
SVC H.264 and H.265 encoding
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Smart Feature-Set
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region of Interest 1 fixed region for main stream and sub stream
Image Enhancement BLC, 3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay No
Network
Network Storage Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users,3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Button Yes
Audio (-S) 1 input (line in), 1 built-in mic, 1 output (line out), mono sound
Alarm (-S) 1 input, 1 output (up to 12VDC, 30mA)
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
H.264+ Main stream support.
H.265+ Main stream support.
Smart Feature-Set
Face Detection Yes
Exception Detection No
General
Firmware Version V5.5.4
General Function One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Power Supply -I, -IS: 12 VDC ± 25%, 5.5 mm coaxial power plug, -IM: 12 VDC ± 25%, Molex plug for DC input, PoE (802.3af, class 3)
Power Consumption and Current 12 V DC ± 25%, 0.5 A, max. 6 W, PoE: (802.3af, 36V-57V), 0.2A to 0.13A, Max:7.5W
Material Metal
Dimensions Camera: Ø 110 mm x 57.4 mm (4.3" x 2.26"), with base: Ø 110 mm x 69.4 mm (4.3" x 2.7") With package: 252 mm x 160 mm x 95 mm (9.9" x 6.3" x 3.7")
Camera: Approx. 580 g (1.3 lb.), With package: 860 g (1.9 lb)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Protection Level IP67, IK10
