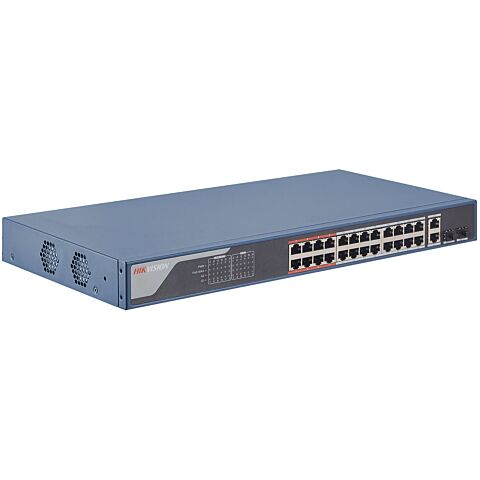

Hikvision DS-3E1326P-EI 24 Port Fast Ethernet Smart POE Switch

In stock
SKU
DS-3E1326P-EI
Special Price R 4,847.00 R 4,214.78 Regular Price R 7,595.00
  • Brands - Cliqtosave Online: Hikvision
Hikvision DS-3E1326P-EI 24 Port Fast Ethernet Smart POE Switch
More Information
BrandHikvision
Networking Device TypePOE Switches

Details

Hikvision DS-3E1326P-EI, L2, Smart Managed, 24 10/100M RJ45 PoE ports, 2 Gigabit combo ports, 802.3af/at, PoE power budget 370W, Max. 300 meter long distance PoE transmission, Visualized Topology Management, Network Health Monitor, Real-Time Alarm Push and Video Control and Preview

Features:

24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

Specifications:

Key Feature
Link aggregation Support G1, G2 port static link aggregation
Network Parameters
Port Number 24 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos.
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode Standard mode (default), Extend mode
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
Forwarding Mode Store-and-forward switching
MAC Address Table 16 K
Internal Cache 4 Mbits
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 6.5472 Mpps
Operation Management
Device Maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
Port Configuration Support rate, flow control, and switch configuration
PoE Power Supply
PoE Standard Ports 1 to 24: IEEE 802.3af, IEEE 802.3at
PoE Power Pin Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE Port Ports 1 to 24
Max. Port Power 30 W
PoE Power Budget 370 W
Software Function
PoE Function IEEE 802.3at/af device provides power supply.
General
Dimension (W x H x D) 440 mm x 44 mm x 221 mm (4.76" x 3.47" x 1.09")
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Power Source 400 W
Net Weight 2.83 kg (6.24 lb)
Shell Metal material, fan-free design
Operating Temperature -10°C to 55°C (14°F to 131°F)
Operating Humidity 5% to 95% (no condensation)
Power Supply 100~240 VAC, 50/60Hz, Max. 6.5 A
Max. Power Consumption 400 W
