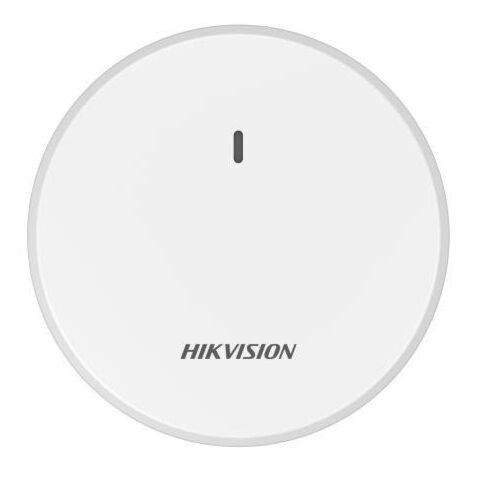

The Hikvision DS-3WAP522-SI is a high-performance Wi-Fi 5 (802.11ac Wave 2) ceiling access point designed to provide robust and efficient wireless connectivity for various environments, including homes, offices, and public venues. With a combined wireless speed of up to 1200 Mbps (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), it ensures smooth streaming, gaming, and other online activities. The device supports over 80 simultaneous user connections, making it suitable for high-density areas. Features like automatic RF optimization and intelligent fast roaming enhance performance and user experience by adjusting Wi-Fi settings for optimal coverage and ensuring seamless transitions between access points. The DS-3WAP522-SI also includes a Gigabit LAN port with PoE support for flexible and convenient installation.
HIKVISION.COM
Key Features:
High-Speed Dual-Band Wi-Fi: Delivers up to 1200 Mbps combined speed, with 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, ensuring fast and reliable wireless connectivity.
Supports 80+ Concurrent Users: Capable of handling over 80 simultaneous connections, making it ideal for environments with multiple devices.
Automatic RF Optimization: Automatically adjusts radio frequency settings to minimize interference and optimize performance.
Intelligent Fast Roaming: Provides seamless connectivity for users moving within the network coverage area, ensuring uninterrupted access.
Gigabit LAN Port with PoE Support: Offers a Gigabit Ethernet port that supports Power over Ethernet, simplifying installation by reducing the need for separate power cables.
Ceiling Mount Design: Designed for ceiling installation, providing optimal coverage and a discreet appearance.
Technical Specifications:
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac Wave 2
Maximum Wi-Fi Speed: 2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps
Frequency Bands: Radio 1: 5 GHz (11a/an/ac); Radio 2: 2.4 GHz (11b/g/gn)
Maximum Number of Clients: 256 (Recommended: 80)
Maximum Number of SSIDs: 8
Power Consumption: Max. 11.35 W
Dimensions: 220 mm × 220 mm × 35 mm (8.66” × 8.66” × 1.37”)
Installation Modes: Desk-Mounted, Wall-Mounted, Ceiling Mounting
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 5% to 95% (non-condensing)
Package Contents:
1200M Access Point ×1
Screw Pack ×1
Quick Start Guide ×1
Regulatory Compliance and Safety Information ×1
The Hikvision DS-3WAP522-SI is an excellent choice for those seeking a reliable and high-performance wireless access point to enhance their network infrastructure.
