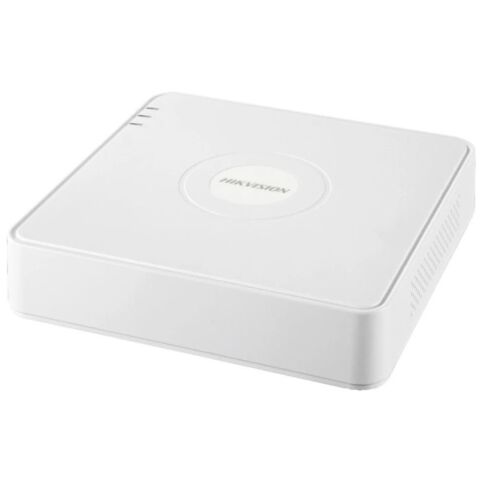

Hikvision DS-7108NI-Q1/8P 8-ch Mini 1U 8 PoE NVR
Brand | Hikvision |
---|---|
CCTV Product Types | NVR |
Details
Hikvision DS-7108NI-Q1/8P 8-ch Mini 1U 8 PoE NVR, 60Mbps Bit Rate Input Max (up to 8-ch IP video) 1 SATA interface,8 independent PoE network interfaces, mini 1U case(Plastic)
Features:
Up to 8 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 6 MP high-definition live view, storage and playback
Up to 4-ch @ 1080p decoding capacity
Up to 60 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDD for continuous video recording
Compatible with third-party network cameras
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces.
Specifications:
Video and Audio
IP video input 8-ch Up to 4 MP resolution
Video resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Incoming/outgoing bandwidth 60 Mbps 60 Mbps
VAG/HDMI output 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Decoding
Decoding format H.265+/H.265/ H.264+/H.264
Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 8-ch
Capability 1-ch @ 6 MP / 4-ch @ 1080p
Network
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Network interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
POE Interface
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75W
Supported standard IEEE 802.3 af/at
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External interface
USB interface 2 x USB 2.0
General
Power supply 48 VDC
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Dimensions (W x D x H) 285 x 215 x 48 mm, (11.2" x 8.5" x 1.9")
Weight (without hard disk) ≤ 1 kg (2.2 lb)
Consumption (without HDD and PoE) ≤ 10 W
Chassis 1U chassis
