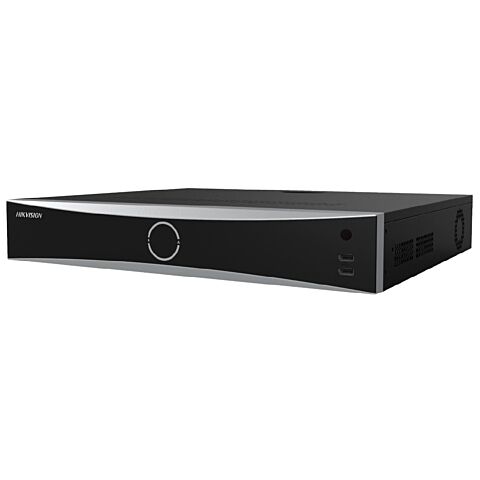

Hikvision DS-7732NXI-I4/16P/S 32-ch 1U 16 POE AcuSense 4K NVR

R 18,259.00
Out of stock
SKU
DS-7732NXI-I4/16P/S
  • Brands - Cliqtosave Online: Hikvision
Hikvision DS-7732NXI-I4/16P/S 32-ch 1U 16 POE AcuSense 4K NVR
More Information
BrandHikvision
CCTV Product TypesNVR

Details

Hikvision DS-7732NXI-I4/16P/S, 256Mbps Bit Rate Input Max(up to 32-ch IP video), 4 SATA Interfaces, 2 HDMI ouputs, 1 VGA port, 1 CVBS output, 1 eSATA,alarm I/O: 16/4, 1.5U case, 19"

Features:

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Up to 16-ch 1080p decoding capability
Up to 256 Mbps incoming bandwidth

Specifications:

System Parameter
Video input channel 32
Incoming bandwidth 256 Mbps
Outgoing bandwidth 256 Mbps
Video resolution 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Smart Analysis
Face picture library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
List library capacity 1w
List library 16
Face picture comparison 4-ch face picture comparison alarm
Face capture 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Video Parameter
Video output 2-ch HDMI, 1-ch VGA
HDMI output HDMI1 output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI2/VGA independent output
VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
Live view window division 1/4/6/8/9/16/25/32/36
Aux port window division 1/4/6/8/9/16/25/32/36
Video decoding format H.265;H.265+;H.264;H.264+;MPEG4
Decoding capability 16-ch @ 1080p (30 fps)
Synchronous playback 16-ch
Audio Parameter
Audio decoding format G.711ulaw;G.711alaw;G.722;G.726;MP2L2
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDD Management
HDD No. 4 SATA interfaces
Extended storage 1 eSATA interface
Recording Management
Playback mode Normal/Smart, Event, Tag, Eternal File
External Port
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial port RS-485 (half-duplex), RS-232, Keyboard
USB interface Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm input/output 16/4
PoE
PoE interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE standard IEEE 802.3 af/at
PoE power ≤ 200W
General Standard
Power ≤ 360 W
Consumption (without HDD) ≤ 30W
Working temperature -10°C~+55°C
Working humidity 10%~90%
Chassis 1.5U
Dimension 445 x 400 x75 mm ( 17.5"x 15.7" x 3.0")
Weight (without HDD) ≤ 7 kg (15.4 lb)
