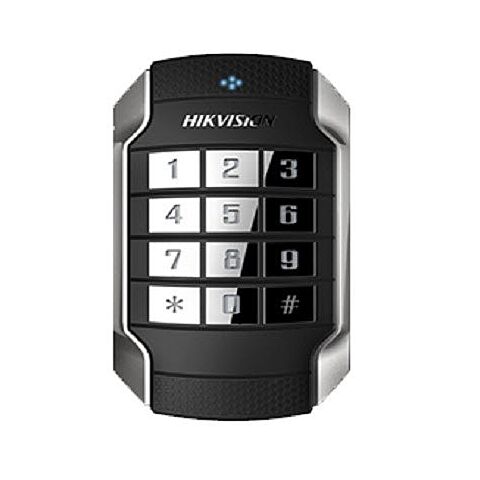

Hikvision DS-K1104MK Mifare Card Reader with Keypad, Reads Mifare 1 card, with keypad, Supports RS485 and Wiegand(W26/W34) protocol; Tamper-proof alarm, Dust-proof, IP 65, Vandal Proof, IK10, Applied for 86 & 120 Gang Box.
Features:
PC + zinc-alloy material shell (material protection level is IK 10)
Equipped with the 32-bit high-speed processor
Built-in audible beeper
Display the reader status with LED indicator
DIP switch
RS485 and Wiegand(W26/W34) protocol
Tamper-proof alarm
Online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
Watchdog design for repairing itself in case that exception occurs, to ensure the long service lifeof the reader
Dust-proof and water-proof design
Read Mifare card and obtain the card No.
Specifications:
Power Supply 12V DC
Working Current ≤500mA
Processor 32-bit
Reading Frequency 13.56MHz
Reading Range ≤50mm (≤1.97")
ID Settings via DIP Switch
Audio Alert Beeper
Power Consumption ≤2W
Keypad No Keypad
Certifications FCC, CE
LED Indicator Power Indicator; Status LED Indicator
Working Temperature -20°Cto +65°C
Working Humidity 10%to 90% (NonCondensing)
Protection Level IP 65
Dimensions 118mm x 76mm x 23mm
Weight ≤0.52Kg
Installing Method Appliedfor 86 & 120 Gang Box
