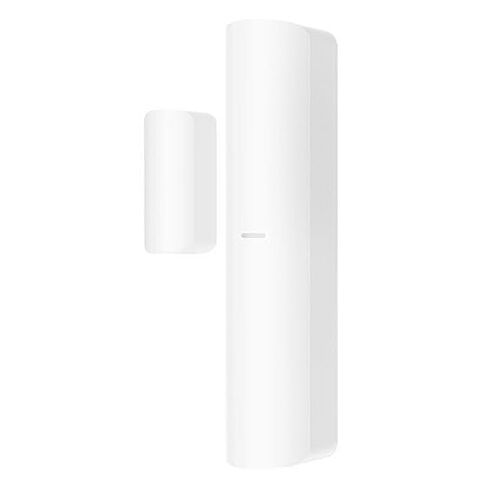

Hikvision DS-PDMC-EG2-WE Wireless Magnet Detector

Out of stock
  • Brands - Cliqtosave Online: Hikvision
Hikvision DS-PDMC-EG2-WE Wireless Magnet Detector
More Information
CCTV Product TypesDetectors

Hikvision DS-PDMC-EG2-WE Wireless Magnet Detector, Designed for serface installation; 868MHz two-way Tri-X wireless technology; Frequency hooping against jamming for reliable transmission; RF Range: 1,600m(open space); 2-ch External Zones for wired sensors; Multiple Enrolling Methods: Power up, Remote ID


Slim design for an unobtrusive (unnoticeable) installation
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission


Detection Performance
Detection Method Opening Contact
Detection Gap 43mm Max
Digital Processing Support
Tamper Protection Front;Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Alarm Input Normally Closed;Normally Open;Impulse Count
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6Km
Frequency Hopping Support
Enrolling Method Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 1
Typical Voltage 3V
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 22.5mm x 103mm x 23.2mm
13mm x 34.4mm x 11.4mm
Weight 59g
Application Scenario Indoor
