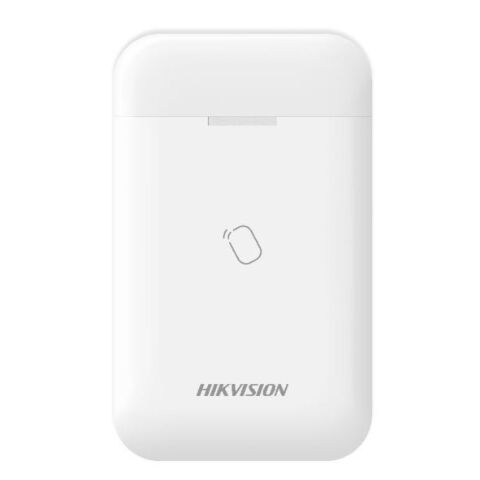

Hikvision DS-PT1-WE Tag Reader, 868MHz two-way Tri-X wireless technology; Frequency hooping against jamming for reliable transmission; RF Range: 1200m(open space); LED display, show the different feedbacks with easy understanding; Operation: Stay arm/ Away arm/ Disarm); Arming process
Features:
868MHz two-way wireless communication
AES-128 encryption
LED display, show the differernt feedbacks with easy understanding
Operation: Stay arm/away arm/disarm by areas
Arming process with fault confirm, more secure
Patrol tag check in
Front and rear panel tamper-proof
Specifications:
Hardware features
Switch Power on/off
Indicator 5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
RF transmission
RF Modulation 2GFSK
RF Frequency 868 MHz
RF Range 1200m(open area)
Electrical characteristics
Battery type Three AA batteries
Battery life span 2 years (swipe tag 10 times per day )
Power Consumption Quiescent current: 110 uA
Max current: 292mA
Voltage: 1.5 VDC
General
Operation temperature -10°C to +55°C (-4°F to +122°F)
Operation humidity 10% to 90% (no condensing)
Dimension(WxHxD) 75*124*21 mm
Weight 176g (with battery)
Color white
Installation method Wall mounting
