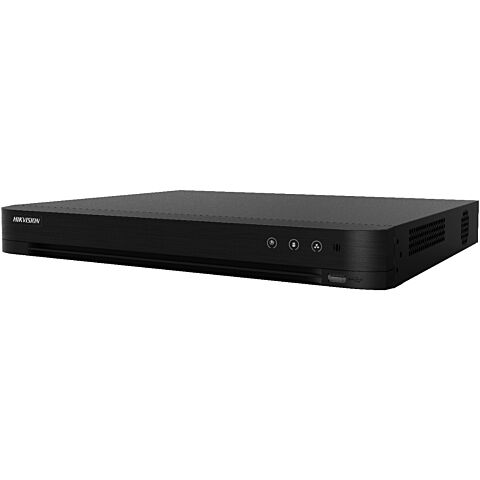

Hikvision Hik 4-ch 1080p 1U H.265 AcuSense DVR
More Information
CCTV Product TypesDVR

Hikvision Hik 4-ch 1080p 1U H.265 AcuSense DVR, 2-ch false alarm Filter, H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 Video Compression, 1-ch IP Video Input, Up to 6 MP Resolution, 4-ch Analog Video Input, HDMI Output, PAL / NTSC CVBS Input, CVBS Output, 4-ch synchronous playback, 1x RJ45 10M/100M self-adaptive Ethernet Interface, 1 SATA Interface, Up to 10 TB capacity for each disk, 2x USB 2.0


iDS-7204HQHI-M1/S - 4-ch 1080p 1U H.265 AcuSense DVR
4 channels and 1 HDD 1U AcuSense DVR
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 6 network cameras can be connected.


Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP [email protected] fps, 1080p lite / 720p / WD1 / 4CIF / VGA / [email protected] fps (P) / 30 fps (N)
For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / [email protected] fps
For 1080p stream access:
1080p / [email protected] fps, VGA / WD1 / 4CIF / [email protected] fps (P) / 30 fps (N)
For 720p stream access: 720p / VGA / WD1 / 4CIF / [email protected] fps (P) / 30 fps (N)
When 1080p Lite mode enabled:
4 MP lite / 3 [email protected] fps, 1080p lite / 720p lite / VGA / WD1 / 4CIF / [email protected] fps (P) / 30 fps (N)
WD1/[email protected] fps, [email protected] fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input 1-ch (up to 5-ch)
Up to 6 MP resolution
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
1024 x 768/60Hz, HDMI/VGA simultaneous output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)
resolution: PAL: 704 x 576, NTSC: 704 x 480
Synchronous playback 4-ch
HDTVI Input 4 MP, 3 MP, 1080p30, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps
*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1 / S, for channel 1 / 2 of iDS-7208HQHI-M1 / S, and for channel 1 / 2 / 3 / 4 of iDS-7216HQHI-M1 / S.
AHD Input 4 MP, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps
HDCVI Input 4 MP, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Remote Connection 32
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface 2 x USB 2.0
Alarm In/Out N/A
Power Supply 12 VDC, 1.5A
Consumption ≤ 18 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W x D x H) 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weight ≤ 1.16 kg (2.6 lb)
