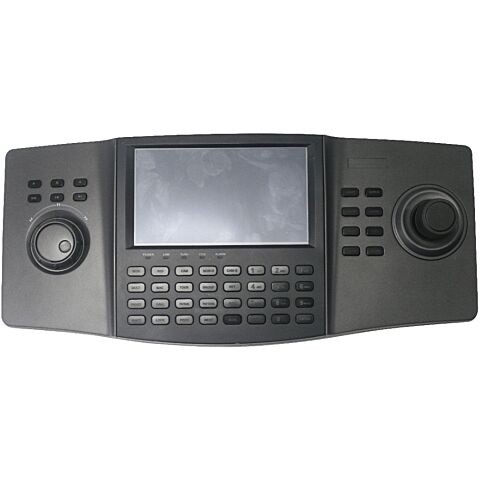

Hikvision Network Keyboard 7 inch TFT Touch Screen

Out of stock
  • Brands - Cliqtosave Online: Hikvision
Hikvision Network Keyboard 7 inch TFT Touch Screen
More Information
Brand Hikvision
CCTV Product Types Tools

Hikvision DS-1100KI Network Keyboard 7" TFT Touch Screen, 1x 100/1000 self-adaptive Network Interface, 1x USB 2.0 Interface, Linux Operating System, Supports Two-Way audio, 1x RS-232, 1x RS-485, H.264, H.265, MPEG4 decoding Format, 7" TFT LCD at 1024x600 Resolution, 4d Joystick


DS-1100KI - Network Keyboard
Divide video wall into regions to manage video wall by region
open/close window, move window, resize window, divide window, and enlarge/narrow sub-window.
Group and macro
Preview camera live image on network keyboard touchscreen
Quickly switch to the previous/next camera
Control speed dome movement via joystick
Play the decoder videos on video wall
Play the video recorder videos on network keyboard touchscreen. Supports clipping and capturing during playback
Add devices via SDK or ONVIF protocol
HikCentral and KPS platforms access
Support up to 32 users (1 administrator and 31 operators) and 4,000 devices
Add/modify/delete cameras in batch
Import/export configuration file

Ergonomic design with 800x480 LCD touch panel
Live view and playback of video on screen at up to 1080p resolution
1-channel video decoding for local preview
Video capture and recording to local U-flash disk
Compatible with DVR/DVS, matrix, network camera/dome, PC-DVR, etc.
Support 15 operators, and each user is allowed to operate 256 devices


Operating System Linux
Network Interface 1 x 100M/1000M self-adaptive network interface
USB Interface 1 x USB 2.0 interface
Audio Interface 1 video input and 1 video output of 3.5 mm audio jack. Supports two-way audio
Video Interface Not supported
Serial Interface 1 x RS-232, 1 x RS-485
Performance Parameter
Decoding Format H.264, H.265, MPEG4
Decoding Capability [email protected]
Screen Split Single screen
Dimension (W x H x D) 193 x 110 x 435 mm ( 7.6" x 4.3" x 17.1")
Weight 2 KG (4.4 lb)
Power Supply 12 VDC
Screen 7" TFT LCD at 1024 x 600 resolution
Joystick 4D joystick
Power Consumption ≤ 15 W
Working Temperature -10 °C to +55 °C (14 °F to 131 °F)
Working Humidity 10 % to 90 %
