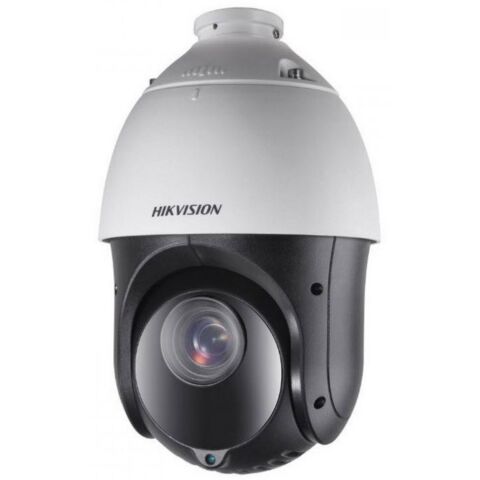

Hikvision Outdoor 25X 2-MP Infra-red Network PTZ Dome Camera

Hikvision Outdoor 25X 2-MP Infra-red Network PTZ Dome Camera. Up to 1920x1080; Min. illumination: Colour: 0. 005; WDR, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus; Up to 100 m IR distance; 12 VDC & PoE+; Support H.265+/H.265 video compression

Features:

1/2.8" progressive scan CMOS
Up to 1920 × 1080@30fps resolution
Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
25× optical zoom, 16× digital zoom
WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
Up to 100 m IR distance
12 VDC & PoE+ (802.3 at, class4)
Support H.265+/H.265 video compression

Specifications:

Camera
Image Sensor 1/2.8" HD progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Signal System PAL/NTSC
Minimum Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC Auto/Manual
BLC ON/OFF
HLC Support
Smart defog Support
WDR 120dB
Shutter Time 1-1/10, 000s
Day& Night ICR
Digital Zoom 16X
Privacy Masking 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus Auto / Semi-automatic / Manual
Lens
Focal Length 4.8 mm to 120 mm, 25x optical zoom
Zoom Speed Approx. 3.6 s (optical lens, wide-tele)
Angle of View Horizontal field of view: 57.6° to 2.5° (Wide-Tele)
Vertical field of view: 34.4° to 1.4° (Wide-Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Minimum Working Distance 10-1, 500mm(Wide-Tele)
Aperture Range F1.6 to F3.5
Pan & Tilt
Pan Range 360°endless
Pan Speed Configurable, from 0.1°/s to 80°/s
Preset speed: 80°/s
Tilt Range -15°-90° (Auto Flip )
Tilt Speed Configurable, from 0.1°/s to 80°/s
Preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display ON/OFF
Infrared
IR irradiation distance 100m
IR irradiation angle Adjustable by zoom
Input & Output
Audio Input 1-ch audio input
Audio Output 1-ch audio output
Network
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution 1920x1080
Main Stream 50Hz:25fps (1920x1080, 1280x960, 1280x720), 50fps (1280x960, 1280x720) ;
60Hz:30fps(1920x1080, 1280x960, 1280x720), 60fps (1280x960, 1280x720)
Sub Stream 50Hz: 25fps(704x576, 640x480, 352x288); 60Hz: 30fps(704x480, 640x480, 352x240)
Third Stream 50Hz: 25fps(1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288)
60Hz: 30fps(1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding Support 4 areas with adjustable levels
Audio Compression G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
Audio Mode OFF/Audio input/Audio output
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users Up to 20 users
Three-Stream Support
Mini SD Card Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), host authentication (MAC address)
Hik-Connect Support
Client GUI
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
General
Menu Language English
Power Supply 12VDC, PoE+
Power Consumption Max.: 18 W (Max. 7 W for IR)
Working Temperature/Humidity -30 °C-65°C(-22°F-149°F)(outdoor)
90% or less
Protection Level IP66 standard (outdoor dome)
TVS 4, 000V lightning protection, surge protection and voltage transient protection
Material ADC 12, PC, PC+10%GF
Dimensions Ø 164.5 mm x 290 mm (Ø 6.48" x 11.42")
Weight (approx.) Approx. 2 kg (4.41 lb)
