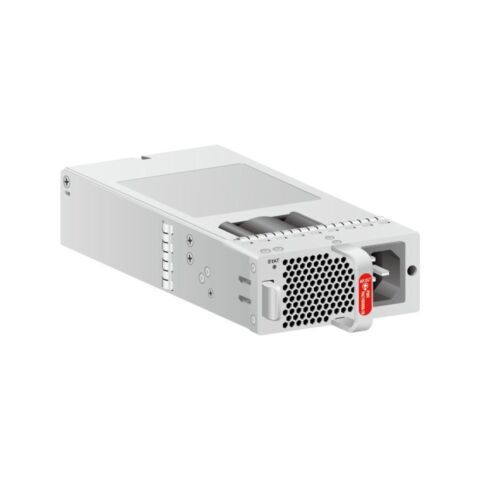

Huawei 1000w Ac And 240v Dc Power Module (02312KND)

Technical Specifications
Description
1000W AC&240V DC Power Module

Part Number
02312KND

Model
PAC1000S56-CB

Dimensions without packaging (H x W x D) [mm(in.)]
40 mm(in.) x 90 mm(in.) x 215 mm(in.)

Weight without packaging [kg(lb)]
1.1 kg(lb)

Rated input voltage [V]
100V AC to 130V AC, 50/60Hz
200V AC to 240V AC, 50/60Hz

Input voltage range [V]
90V AC to 290V AC, 45Hz to 65Hz

Maximum input current [A]
100V AC to 130V AC: 12A
200V AC to 240V AC: 8A

Rated output voltage [V]
56V DC

Rated output power [W]
1000 W

Hot swapping
Supported

IN THE BOX
Huawei 1000w Ac And 240v Dc Power Module (02312KND)
