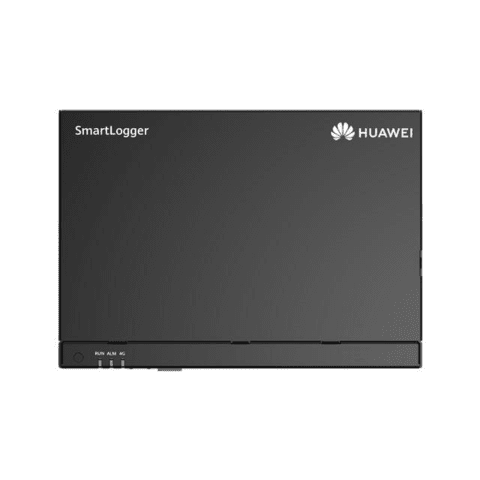

Huawei SmartLogger 3000 A03EU Solar Smart Monitor and Data Logger with 4G MBUS

Huawei SmartLogger 3000 A03EU Solar Smart Monitor & Data Logger with 4G/MBUS 02312SCU-003

The Huawei SmartLogger 3000A03EU is designed to manage up to 80 devices. To this end, this model provides a wide range of communication channels. The module supports RS485, MBUS, Ethernet, and 2G, 3G, and 4G cellular standards. On-site commissioning is completed safely, quickly and easily. To do this, the Huawei SmartLogger 3000A03EU is first mounted. With its dimensions of 225 x 160 x 44 mm at a weight of only 2 kg, a suitable place is available almost everywhere. Due to the IP20 protection class, the housing is well protected against environmental influences: The operating temperature may be -40 °C to + 60 °C, a relative humidity of 5 % to 95 % is tolerated.

After installation, commissioning follows - this can be done effortlessly with a notebook or directly with the Huawei Fusion Solar App (WLAN). The installer is guided by the software, and three LEDs on the housing indicate the status of the data logger. After installation, the device works with high efficiency and offers numerous intelligent control options. The internal web server is also already installed. Most of the necessary accessories for the Huawei SmartLogger 3000A03EU and its installation are included in the delivery, including the patch and power cables. The device typically requires 8 watts (maximum 15 watts).

Max. 80 manageable devices
Installation via FusionSolarApp or notebook
Integrated web server
Communication via RS485, MBUS, Ethernet and 4G
