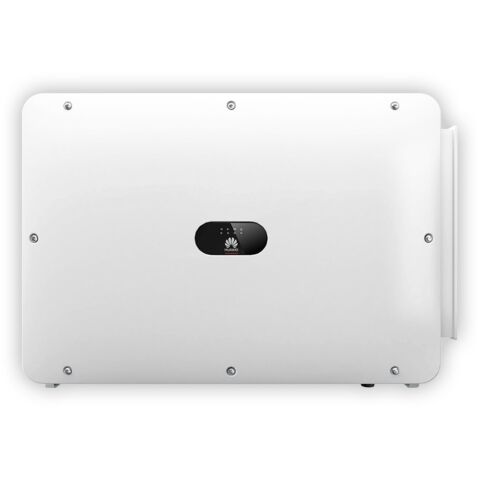

Huawei SUN2000 100kVA 3 phase Solar Inverter, SUN2000-100KTL-M2, 3-phase Inverter with 100000VA Power, 10 MPP tracker, Efficiency up to 98.8%, RS485 for Smart Power sensor and SmartLogger
Overview:
HUAWEI SUN2000-100KTL-M2 inverter is an uncompromisingly powerful module for large-scale solar power systems. It converts the generated electricity from sunlight into grid-standard alternating current. This is available on site or for feeding into the grid. The dimensions of 1035 x 700 x 365 mm are compact for an inverter of this power class, the weight is 93 kg. Installation is therefore best done in pairs or threes. DC connection to the PV system is via plug-in connections, so commissioning is completed quickly. The Huawei FusionSolar app helps with the setup. The HUAWEI SUN2000-100KTL-M2 inverter also connects effortlessly with smart components. It supports RS485 communication, for example, with the smart logger . The data can be viewed via the FusionSolar management system . In summary, the HUAWEI SUN2000-100KTL-M2 inverter offers numerous advantages, including the module already has overvoltage protection (type 2 for DC and AC). In addition, ten independent MPP trackers are installed at the factory. Another pleasant feature is the low noise level thanks to modern Smart Air Cooling . The power of 115,000 watts meets the needs of a large system, the MPPT voltage range is between 200 and 1000 volts . The maximum efficiency reaches an amazing 98.8%, the European efficiency 98.6% . All this ensures a high yield in operation.
Specifications:
Efficiency
Max. efficiency 98.8% @480 V, 98.6% @400 V
European efficiency 98.6% @480 V, 98.4% @400 V
Input
Max. Input Voltage 1 1,100 V
Max. Current per MPPT 30 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V
Nominal Input Voltage 720 V @480 Vac, 600 V @400 Vac
Number of MPP trackers 10
Max. input number per MPP tracker 2
Output
Nominal AC Active Power 100,000 W
Max. AC Apparent Power 110,000 VA
Max. AC Active Power (cosØ=1) 110,000 W
Nominal Output Voltage 480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Nominal Output Current 120.3 A @480 V, 144.4 A @400 V
Max. Output Current 133.7 A @480 V, 160.4 A @400 V
Adjustable Power Factor Range 0.8 leading... 0.8 lagging
Max. Total Harmonic Distortion < 3%
Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Type II
AC Surge Arrester Type II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Arc Fault Protection Yes
Smart String Level Disconnector Yes
Communication
Display LED indicators, WLAN adaptor + FusionSolar APP
RS485 Yes
USB Yes
Smart Dongle-4G 4G / 3G / 2G via Smart Dongle - 4G (Optional)
Monitoring BUS (MBUS) Yes (isolation transformer required)
General Data
Dimensions (W x H x D) 1,035 x 700 x 365 mm
Weight (with mounting plate) 93 kg
Operating Temperature Range -25°C ~ 60°C
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0 ~ 100%
DC Connector Staubli MC4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP66
Topology Transformerless
Nighttime Power Consumption < 3.5 W
