Huawei SUN2000 20kVA 3 phase Solar Inverter, SUN2000-20KTL-M5, 2 Independent MPP trackers, 4 DC connections, Efficiency up to 98.4%, Smart Air cooling, RS485 for Smart Power sensor and smartlogger
Overview:

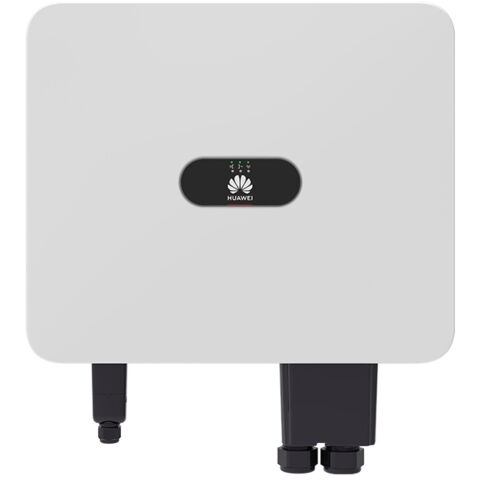

The HUAWEI SUN2000-20KTL-M5 inverter converts the direct current of the solar modules into standard household alternating current. This makes it an indispensable component - with its high efficiency, it ensures optimal efficiency of the entire system. The dimensions of the HUAWEI SUN2000-20KTL-M5 inverter are 546 x 460 x 228 mm, which makes the device convincing with its compact design. The weight of 21 kg is also pleasantly low for a component of this type - installation can be carried out by two people or even alone. Integration is effortless with the plug-in connections. The component has RS485 communication for data exchange with the smart power meter. Commissioning is greatly simplified by the Huawei FusionSolar app, so that it is successfully completed in just a few minutes.
The advantages of the HUAWEI SUN2000-20KTL-M5 inverter are many. The inverter is also equipped with overvoltage protection (type 2 for AC and DC), as well as two independent MPP trackers. Also positive is the pleasantly quiet operating noise. The HUAWEI SUN2000-20KTL-M5 inverter has a rated power of 22,000 VA, and the voltage range extends from 200 to 1,000 volts . The maximum efficiency of 98.4% is very high, which allows the entire system to operate extremely efficiently. The European efficiency is specified at 98.1 % .
Features:
3-phase inverter with 22,000VA power
2 independent MPP trackers
4 DC connections
Efficiency up to 98.4%
Communication via WLAN / Ethernet & 2G/3G/4G**
Integrated PID recovery
AFCI arc detection integrated
Smart Air Cooling
Protection class IP66
Installation via FusionSolarApp
Free system monitoring with FusionSolar
RS485 for Smart Power Sensor and Smartlogger
Connection for ripple control receiver
DC MBUS communication for Smart Optimizer*
Integrated AC and DC overvoltage protection TYPE II
Specifications:
HUAWEI SUN2000-20KTL-M5 - General Data
Operating temperature range -25 ~ +60 °C
Relative operating humidity 0 % RH~100 % RH
Operating altitude 0 - 4,000 m (derating > 2.000 m)
Cooling Smart Air Cooling
Display LED indicators, integrated WLAN + FusionSolar App
Communication RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket) 21 Kg
Dimensions (incl. mounting bracket) 546 x 460 x 228 mm
Protection class IP66
PID consumption 5W
HUAWEI SUN2000-20KTL-M5 - Input DC
Recommended maximum PV power 30,000 Wp
Max. Input voltage 1,100 V
Operating voltage 200 V ~ 1000 V
Starting voltage 200 V
Rated input voltage 600 V
Max. Input current per MPPT 30 A (two string) / 20 A (single string)
Max. Short circuit current 40 A
Number of MPP trackers 2
Max. Number of inputs per MPPT 4
HUAWEI SUN2000-20KTL-M5 - Output AC
Mains connection three-phase
Rated power 20,000 W
Maximum apparent power 22,000 VA
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415Vac, 3W + N + PE
AC - Line frequency 50 Hz / 60 Hz
Maximum output current 33.6A/380Vac, 31.9A/400Vac, 30.8A/415Vac
Adjustable power factor 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD) ≤ 3%.
HUAWEI SUN2000-20KTL-M5 - Efficiency
Max. Efficiency 98.4 %
European efficiency 98.1 %
HUAWEI SUN2000-20KTL-M5 - Protection devices
DC load break switch Yes
Islanding detection Yes
AC overcurrent protection Yes
AC short-circuit protection Yes
DC reverse polarity protection Yes
AC overvoltage protection CLASS II
DC overvoltage protection TYPE II
Fault current monitoring Yes
Arc detection Yes
Inputs ripple control receiver Yes
Integrated PID Yes
