Huawei SUN2000 30kVA 3 phase Solar Inverter, SUN2000-30KTL-M3, 3-phase Inverter with 33000VA Power, 4 Independent MPP trackers, 8 DC connections, Efficiency up to 98.7%, RS485 for Smart Power sensor and SmartLogger, Convection cooling
Overview:

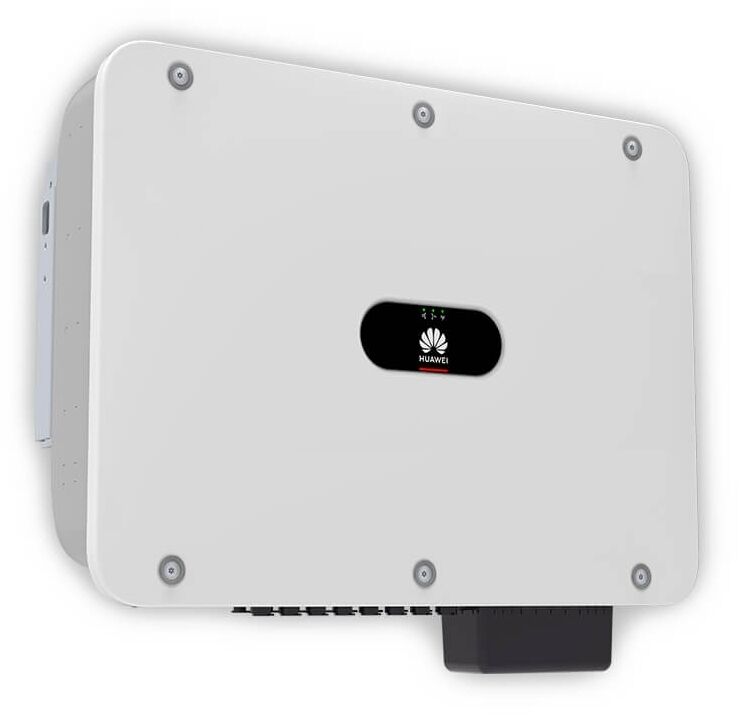

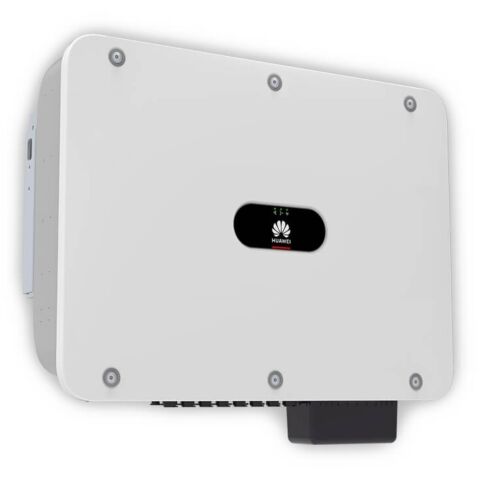

The Huawei SUN2000-30KTL-M3 is a powerful inverter that performs an indispensable task in the PV system: It converts the direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-30KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg - including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.
A big advantage of the Huawei SUN2000-30KTL-M3 is the factory-supplied overvoltage protection (type 2 for AC and DC) as well as four independent MPP trackers are innovative details. In addition, the module operates pleasantly quietly, because the cooling takes place without a fan by natural convection. The maximum power of the Huawei SUN2000-30KTL-M3 inverter is 33,000 watts. With the grid code Austria setting, the maximum power is limited to 30 kVA. The MPPT operating voltage range is from 200 V to 1,000 volts. With a maximum efficiency of 98.7 percent and a European efficiency of 98.4 percent, the component achieves enormous efficiency.
Features:
3-phase inverter with 33,000VA Power
4 independent MPP trackers

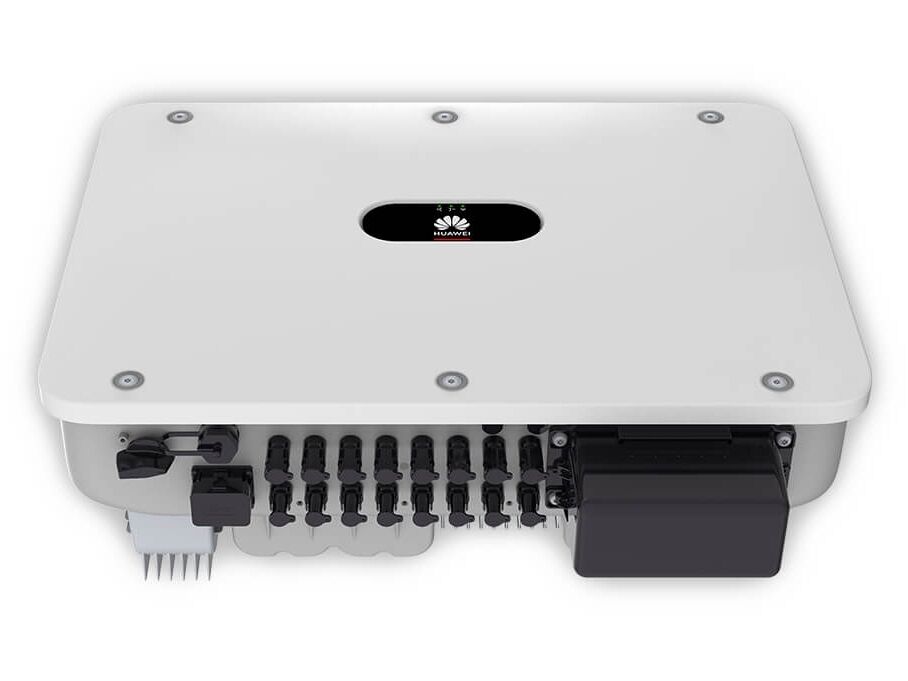

8 DC connections
Efficiency up to 98.7%
Communication via WLAN / Ethernet & 2G/3G/4G (optional)
Free system monitoring with FusionSolar
RS485 for Smart Power Sensor and SmartLogger
Connection for ripple control receiver
DC MBUS communication for Smart Optimizer
Integrated AC and DC overvoltage protection TYPE II
Integrated PID recovery
Convection cooling
Protection class IP66
Higher yield
Max. Efficiency 98.7%
Secure
Fuse-free design
Smart
Intelligent string monitoring
Reliable
Type II arrester for DC & AC
Specifications:
Efficiency
Max. Efficiency 98.7 %
European Efficiency 98.4 %
Input
Max. Input Voltage 1 1,100 V
Max. Current per MPPT 26 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1000 V
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4
Output
Rated AC Active Power 30,000 W
Max. AC Apparent Power 33,000 VA 3
Rated Output Voltage 230 Vac / 400 Vac / 480 Vac, 3W/N+PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Rated Output Current 43.3 A
Max. Output Current 47.9 A
Adjustable Power Factor Range 0.8 LG ... 0.8 LD
Max. Total Harmonic Distortion < 3%
Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Yes
AC Surge Arrester Yes
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Arc Fault Protection Yes
Ripple Receiver Control Yes
Integrated PID Recovery 4 Yes
Communication
Display LED Indicators, Integrated WLAN + FusionSolar APP
RS485 Yes
Smart Dongle WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
4G / 3G / 2G via Smart Dongle-4G (Optional)
Monitoring BUS (MBUS) Yes (Isolation Transformer required)
General Data
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)

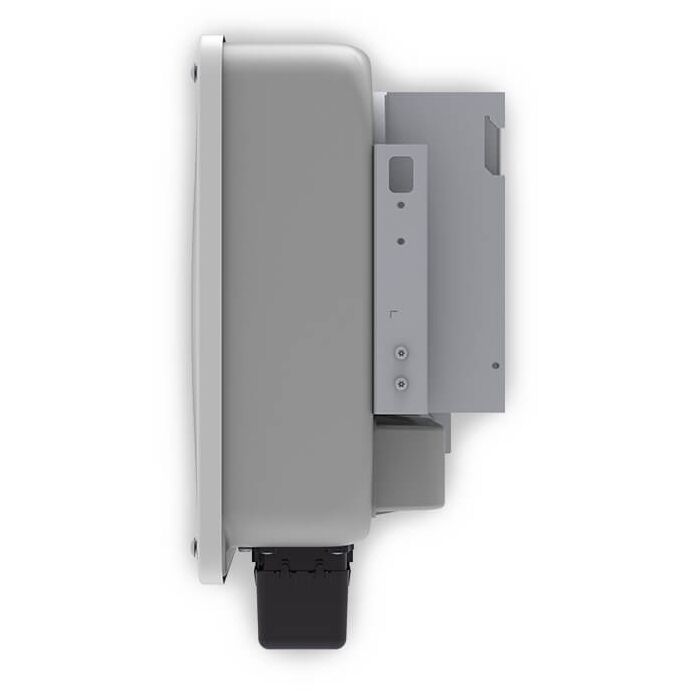

Weight (with mounting plate) 43 kg (94.8 lb)
Operating Temperature Range -25 ~ + 60 °C (-13 °F ~ 140 °F)

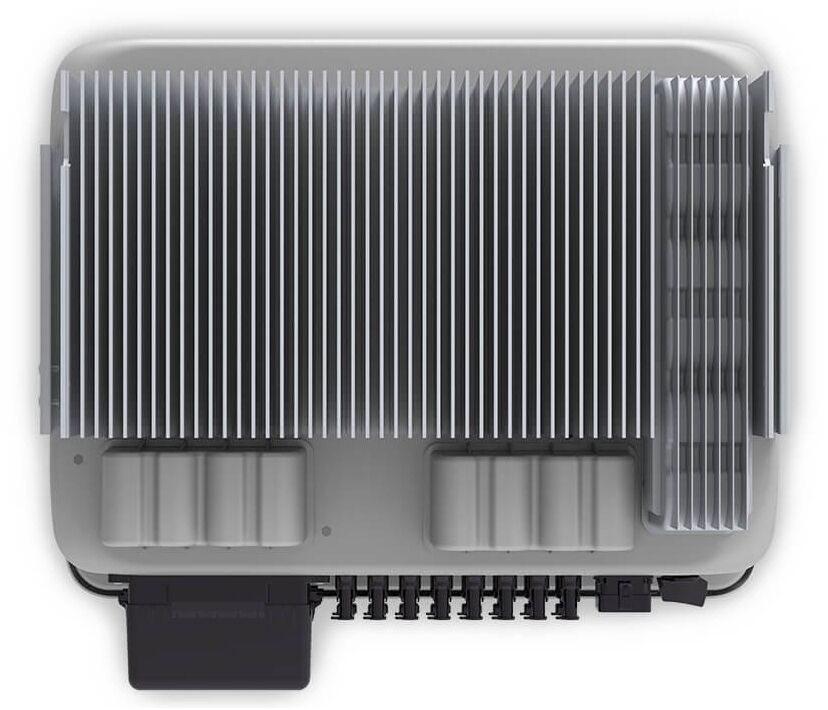

Cooling Method Natural Convection
Max. Operating Altitude 4,000 m (13,123 ft.) (Derating above 2000 m)
Relative Humidity 0% RH ~ 100% RH
DC Connector Staubli MC4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Nightime Power Consumption ≤ 5.5W
Optimizer Compatibility
DC MBUS Compatible Optimizer SUN2000-450W-P
