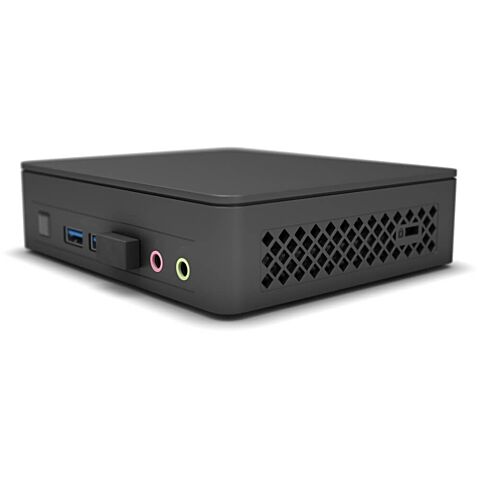

Intel NUC L9 Mini PC, Intel Celeron N4505 2.2GHz up to 2.9GHz 4MB Cache Dual Core Processor with Intel UHD HD Graphics, 2x DDR4-2933 slots ; 64 eMMC storage, M.2 slot, DP++/HDMI, 2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2, 2x USB 2.0, 1x 3.5mm stereo out jack, 1x 3.5mm Microphone jack, 10/100/1000 Integrated LAN, Intel Wireless-AC 9462 + Bluetooth 5.0, Bluetooth
Specifications:
Essentials
Product Collection Intel NUC Kit with Intel Celeron Processors
Code Name Products formerly Atlas Canyon
Status Launched
Launch Date Q1'22
Supported Operating Systems Windows 11*, Windows 10*, Linux
Board Number NUC11ATBC2
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 1
Lithography 10 nm
TDP 10 W
DC Input Voltage Supported 19VDC
Processor Included Intel Celeron Processor N4505 (4M Cache, up to 2.90 GHz)
Intel vPro Platform Eligibility No
Total Cores 2
Total Threads 2
Processor Base Frequency 2.00 GHz
Supplemental Information
Embedded Options Available No
Memory & Storage
Included Storage Optional 64GB eMMC
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2933 1.2V SO-DIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Integrated Graphics Yes
Graphics Output DP++/HDMI
# of Displays Supported 2
Expansion Options
PCI Express Revision Gen 3
M.2 Card Slot (wireless) 1
M.2 Card Slot (storage) 1
I/O Specifications
# of USB Ports 6
USB Configuration 2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2, 2x USB 2.0
USB Revision 3.2 Gen 2 / 3.2 Gen 1 / 2.0
Audio (back channel + front channel) 1x 3.5mm stereo out jack, 1x 3.5mm microphone jack
Integrated LAN 10/100/1000
Integrated Wireless Intel Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth Yes
Package Specifications
Chassis Dimensions 135x115x36mm
Advanced Technologies
Intel vPro Platform Eligibility No
Intel HD Audio Technology Yes
Intel Platform Trust Technology (Intel PTT) Yes
Security & Reliability
Intel AES New Instructions Yes
