Features:
Hardware

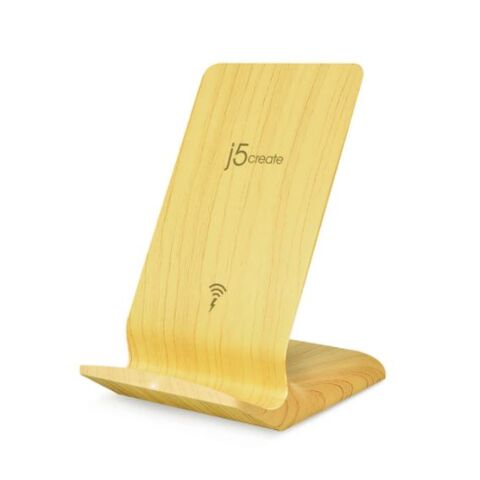

10W Wireless Charger
Coil
2
Input
5V/2A, 9V/2A, 12V/1.5A
Output
5V/1A or 1.5A, 9V/1.1A
Quick Charge™ 3.0 Charger
Input
100-240V to 50/60 Hz, 0.5A
Output
5V/3A, 9V/2A, 12V/1.5A
Indicator Light
When connected to a power outlet - Flashes blue, white 3 times and then white stays lit
When charging - Fading warm white, blue 3 times and then turns off
When not charging properly due to foreign object detection - Flashes blue, then enters protection mode and stops charging until the foreign object is removed
When not charging properly due to overheating - Flashes blue and white, then enters protection mode and stops charging until the temperature reaches a safe level
Physical Specifications
Dimensions
10W Wireless Charger:
3.43 (W) x 2.69 (H) x 4 (D) in. /
87 (W) x 68.4 (H) x 117.8 (D) mm
Quick Charge™ 3.0 Charger:
1.77 (W) x 2.18 (H) x 0.92 (D) in. /
45 (W) x 55.4 (H) x 23.4 (D) mm
USB-C™ cable:
3.3 ft / 100 cm
Weight
10W Wireless Charger:
Approximately 0.23 lb / 105.5 g
Quick Charge™ 3.0 Charger:
Approximately 0.13 lb / 58.5 g
Environmental
Storage Temperature
-20 – 70°C
Storage Humidity
5 – 95% RH. Non-condensing
Operation Temperature
0 – 25°C
Operation Humidity
< 35 – 95% RH. Non-condensing
