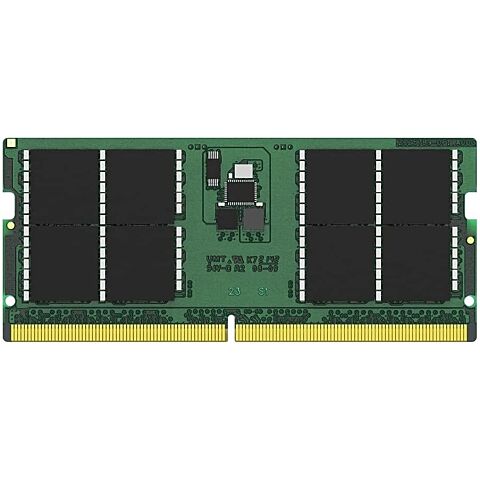

Kingston 8GB DDR5-4800 CL40 1.1V 262 pin SO-DIMM Memory, 1R (Single Rank)
Overview:
Greater starting speed performance.
DDR5 debuts at 4800MHz, while DDR4 tops out at 3200MHz. This represents a 50% increase in bandwidth. In cadence with compute platform releases, DDR5 has planned performance increases that will scale to 6400MHz.
Reduced power / increased efficiency.
At 1.1V, DDR5 consumes 20% less power than DDR4 equivalent components at 1.2V. In addition to conserving battery life in laptops, it also has a significant advantage for enterprise servers working around the clock.
PMIC.
DDR5 modules feature on-board Power Management Integrate Circuits (PMIC), which help regulate the power required by the various components of the memory module (DRAM, register, SPD hub, etc). For server-class modules, the PMIC uses 12V; for PC-class modules, it uses 5V. This makes for better power distribution compared to previous generations, improves signal integrity and reduces noise.
SPD hub.
DDR5 utilises a new device that integrates the Serial Presence Detect (SPD) EEPROM with additional hub features, manages access to the external controller and decouples the memory load on the internal bus from external.
Specifications:
SKU KCP548SS6-8
EAN/UPC Code 740617328783
Brand Kingston
Memory Capacity 8GB
Module Quantity 1 Module
Speed (Data Rate) 4800MT/s (PC5-38400)
Module Type SODIMM
Error Check Non-ECC
Model/Series/Type KCP
CAS Latency CL40
Form Factor DDR5
Rank 1R (Single Rank)
Pins 262 Pin
Operating Temperature 0°C to 85°C
DRAM Density 16Gbit
Memory Voltage 1.1v
Memory Depth 1G
Product Type/Family RAM
Packaging Type Retail
Chip Organization x16
Data Width X64
