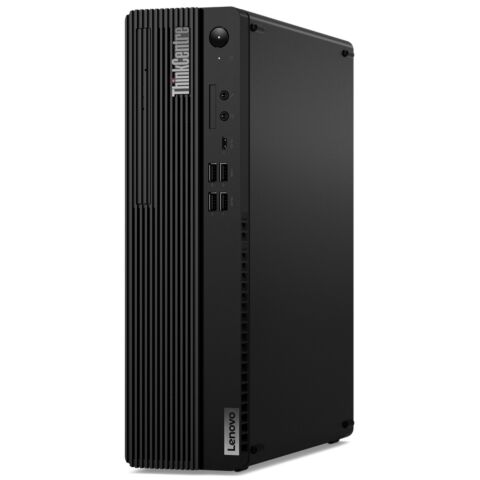

Lenovo ThinkCentre M90s Gen 3 SFF PC i7-12700 4.9GHz 8GB RAM 512GB SSD Intel

Lenovo ThinkCentre M90s Gen 3 SFF PC, Intel Core 12th Gen i7-12700 up to 4.9GHz 25MB Cache Twelve (12x) Core Processor with intergrated Intel UHD Graphics 770 (6 performace & 4 efficient Cores), 16GB DDR5-4400 Memory, 512GB M.2 PCI-e Solid State Drive, DVD writer Optical Drive, USB Keyboard & Mouse, Windows 11 Pro 64bit, 1WX1 Speakers, 380W Power Supply, 1x USB-C 3.2 Gen 2 (Support Data transfer and 15W charging) (Front), 2x USB 3.2 Gen 1 (Front), 2x USB 3.2 Gen 2 (Front), 1x Headphone / Microphone combo jack (3.5mm) (Front), 1x Microphone (3.5mm) (Front), 4x USB 3.2 Gen 1, 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4, 1x Gigabit Ethernet (RJ-45), 1x Line-Out (3.5mm)

Specifications:

ThinkCentre M90s Gen 3
Part Number 11TW000ESA
PERFORMANCE
Processor Intel Core i7-12700, 12C (8P + 4E) / 20T, Max Turbo up to 4.9GHz, P-core 2.1 / 4.8GHz, E-core 1.6 / 3.6GHz, 25MB
Graphics Integrated Intel UHD Graphics 770
Chipset Intel Q670 Chipset
Memory 16GB UDIMM DDR5-4400
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Max Memory Up to 128GB DDR5
Storage 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal
Storage Support Up to four drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD 2.5" HDD up to 1TB 3.5" HDD up to 2TB M.2 SSD up to 2TB each
Card Reader None
Optical DVD±RW
Audio Chip High Definition (HD) Audio, Realtek ALC897Q-CG codec
Speakers 1Wx1
Power Supply 380W 92%
Keyboard USB Traditional Keyboard, Black, English (EU)
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots One PCIe 4.0 x16 (x4 signal), low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
Two PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand None
Dust Filter None
Form Factor SFF (8.2L)
Dimensions (WxDxH) 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight Around 5.3 kg (11.7 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth None
Front Ports 1x USB-C 3.2 Gen 2 (support data transfer and 15W charging)
2x USB 3.2 Gen 1
2x USB 3.2 Gen 2
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports 4x USB 3.2 Gen 1
1x HDMI 2.1 TMDS
2x DisplayPort 1.4
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
Monitor Cable None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington Security Slot, 3 x 7 mm
Padlock Loop
Smart Cable Clip None
Chassis E-Lock None
Chassis Intrusion Switch None
MANAGEABILITY
System Management Intel vPro Enterprise
CERTIFICATIONS
Green Certifications ErP Lot 3
RoHS compliant
TCO Certified 9.0
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System Windows 11 Pro, English
Bundled Software None
ACCESSORIES
Bundled Accessories None
