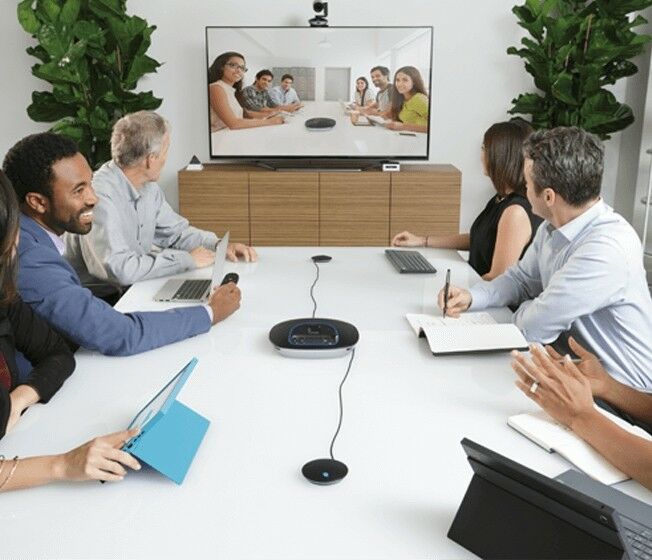

ConferenceCam solution for meetings with up to 14 participants
- LCD display for Caller ID and other info
- Tripod mountable
- 360-degree full-duplex speakerphone
- Dockable wireless remote control
- Support 1080P HD (1920x1080) video call @ 30FPS
- Echo and noise-cancelling technology
- Mac compatible

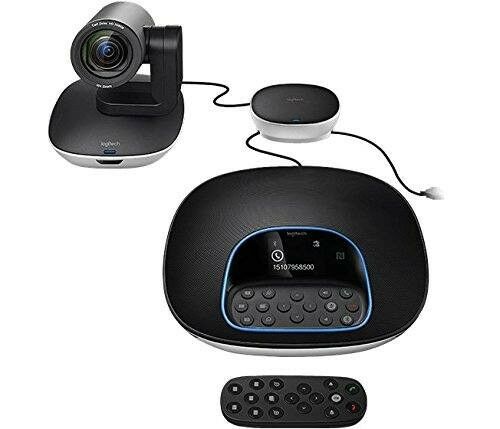

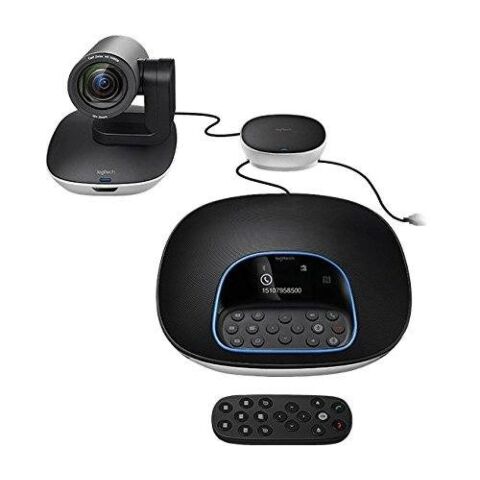

- Kit contains: camera, speakerphone & hub
SPECIFICATIONS:
Brand Logitech
Series Group Video Conferencing System
Model 960-001057
Details

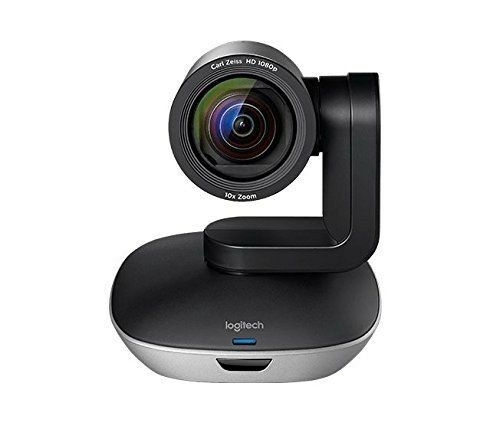

Camera Smooth motorized pan
Tilt and zoom
Controlled from remote or console 260°pan
130° tilt
10x lossless HD zoom
90° Field of View
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus 5 camera presets
Far-end control (PTZ) of ConferenceCam product
ZEISS lens certification
Kensington security slot
LED to confirm video streaming
Standard tripod thread
Remote control Dockable 8.5 m/28-foot range

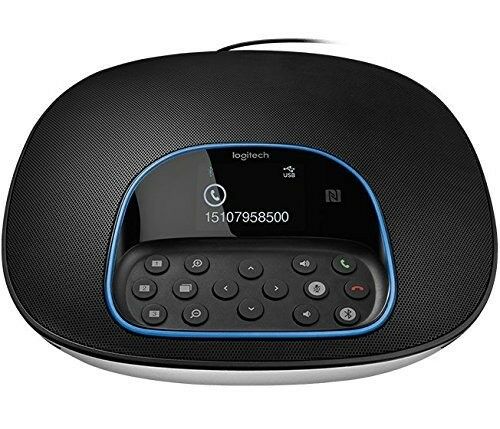

Speakerphone Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Bluetooth and NFC enabled
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Touch controls for call answer/end, volume and mute, Bluetooth – plus camera PTZ, “home” preset and far-end control
Microphones (Tx)
Four omni-directional microphones supporting 20-foot diameter range
Frequency response 100Hz – 11KHz
Sensitivity -28dB +/-3dB
Distortion <5% from 200Hz
Kensington security slot

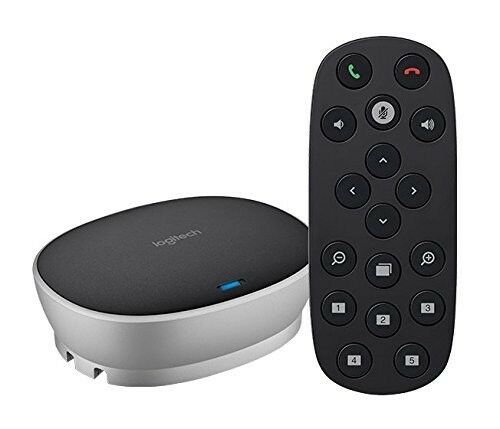

Hub / Cable Central mountable hub for connection of all components
Included adhesive solution for under-table mounting
Two cables for connection between hub and camera/ speakerphone (Length 5m/16 ft)
One USB cable for connection to PC/Mac (Length 2 m/6.6 ft)
AC Power adapter (Length 3 m/9.8 ft)
Mount Dual purpose mount for wall placement or for elevating camera on table
Compliance and tools
USB 2.0 compliant
UVC-compliant video and audio for broad application compatibility
Skype for Business certified, Microsoft Lync, Cisco Jabber and WebEx compatible
Enhanced integration with Logitech Collaboration Program (LCP) members
Downloadable diagnostic tool
Field upgradeable firmware tool
Downloadable app plug-ins for advanced feature support
Dimensions
Camera 130 mm x 170 mm x 138 mm
Weight 585 g
Speakerphone 240 mm x 65 mm x 240 mm
Weight 1223 g
Hub 94 mm x 34 mm x 74 mm
Weight 83 g
Remote 50 mm x 120 mm x 12 mm
Weight 51 g
Wall/Table Mount 210 mm x 120 mm x 99 mm
Weight 255 g
Expansion Mics 83 mm x 83 mm x 21 mm
Weight 230 g
System Requirements Windows 7, 8.1 or 10
Mac OS X 10.7 or higher
Package Contents Camera
Speakerphone
Remote control
Two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub
One 3m/9.8’ meter cable between hub and PC
Velcro for cable management
Velcro for hub to table securing
Powered hub
Power adapter with regional plugs
Mount
Quick start guide
