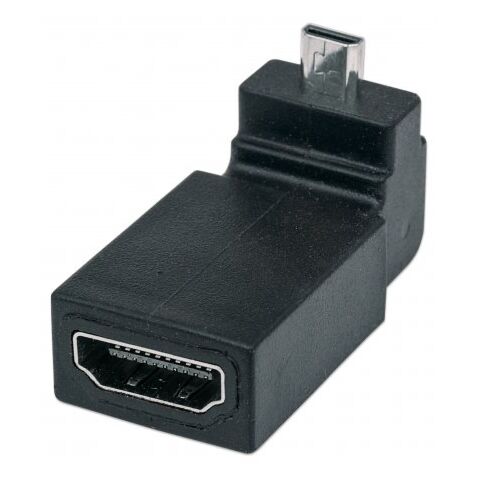

Manhattan HDMI Adapter - HDMI A Female to Micro Male, 90° Up Angle , Retail Box, Limited Lifetime Warranty
Easily connect an HDMI Micro device to an HDMI display using standard HDMI cable.
Product Overview
The Manhattan HDMI A Female to Micro Male, 90° Up Angle Adapter is ideal for connecting HDMI Micro tablets and other mobile devices to HDMI displays with HDMI cable. Its small size allows for easy storing and carrying, and its convenient 90° angle allows for easy connection in even the most difficult locations. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.
Features
•Supports 4K resolution
•Gold-plated contacts for best performance
•Intended for use with Manhattan HDMI cables
Specifications
•Bandwidth: 10.2 Gbps
•340 MHz
•Meets or exceeds existing HDMI standards
•Length: 4 cm (1.6 in.)
Connectors
•HDMI A female, 19-pin gold-plated contacts
•HDMI Micro D male 19-pin gold-plated contacts
Electrical
•Current rating: 0.5 ADC
•Withstanding voltage: 300 VDC
•Insulation resistance: 5 MΩ
•Conductive resistance: 2 Ω
General
•Length (overall): 38.7 x 20 x 22 mm (1.5 x 0.8 x 0.9 in.)
•Weight: 10 g (0.35 oz.)
•Moulded PVC
Package Contents
•HDMI Adapter, A to Micro
