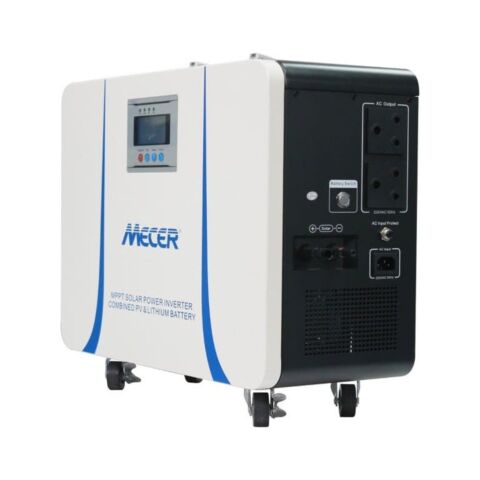

Mecer 1kVA 1kW 25.6V 50Ah Lithium Battery Mobile Inverter with 820W MPPT Controller SOL-I-BB-M1L

In stock
SKU
SOL-I-BB-M1L
Special Price R 9,697.00 Regular Price R 15,180.00
  • Brands - Cliqtosave Online: Mecer

• Pure sine wave output

• 2000 cycles lifePO4 battery

• Mains supply mode, Battery mode

• 5V DC USB 2.0 ports

• 12V DC output ports

• MPPT solar charge controller

• Over charge protection as well as over discharge protection

• Intelligent exhaust fan

More Information
BrandMecer
Supply TypeInverters

Details

Mecer 1kVA 1kW 25.6V 50Ah Lithium Battery Mobile Inverter with MPPT Controller SOL-I-BB-M1L

Features

  • Pure sine wave output

  • 2000 cycles lifePO4 battery

  • Mains supply mode, Battery mode

  • 5V DC USB 2.0 ports

  • 12V DC output ports

  • MPPT solar charge controller

  • Over charge protection as well as over discharge protection

  • Intelligent exhaust fan



Technical Specification

Rated Power: 1 000VA / 1 000W

Input

Voltage range: 140 - 275V

Mains charging current: 10A

Frequency Range: 45-65Hz

Output

Voltage: 230V AC

Frequency: 50/60Hz

Output wave form: Pure Sine Wave

Battery

Battery Voltage: 25.6V DC

Battery capacity: 1X 50Ah

Battery cycle life: 2 000 Cycles @ DOD 80%

Solar Charger

Solar Charge Type: MPPT

Maximum PV Array Power: 840W

Number of MPPTs: 1

MPPT Range @ Operating Voltage: 35 - 100V DC

Maximum Solar Charge Current: 30A (Max)

Floating Charge Voltage: 28.4V DC

DC Output

Low Voltage Recovery: 26.8V DC

Low Voltage Protection: 22.4V DC

5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A

12V DC Output Ports: 2 Pcs Max 2A

Physical

Heat Dissipation / Cooling: Intelligent exhaust fan (Temperature controlled)

Dimensions W X D X H (mm): 480 X 192 X 410

Package size W X D X H (mm): 527 X 277 X 475

Net Weight (kgs): 29 kg

Gross Weight (kgs): 31 kg



*Product images are for illustration purposes only.
