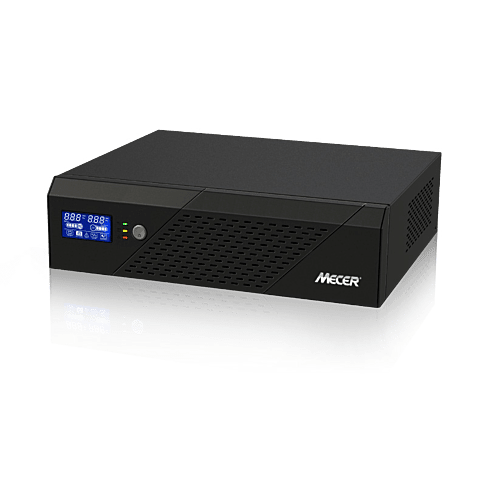

Mecer 2400VA, 1440W, 24V DC-AC Inverter

In stock
SKU
IVR-2400LBKS
Special Price R 2,570.00 R 2,234.78 Regular Price R 4,203.00
  • Brands - Cliqtosave Online: Mecer

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display. No solar built-in (option not available).. Batteries not included. Includes: Battery cables, 1x cable with SA 3pin plug. Requires 2x 12V deep cycle batteries. Please take note of connection polarity (+Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1).

More Information
BrandMecer
Supply TypeInverters
Frequently Bought Together

Details

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display. No solar built-in (option not available).. Batteries not included. Includes: Battery cables, 1x cable with SA 3pin plug. Requires 2x 12V deep cycle batteries. Please take note of connection polarity (+Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1).

IVR-2400LBKS

Mecer 2400VA, 1440W, 24V DC-AC Inverter

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display. No solar built-in (option not available).. Batteries not included. Includes: Battery cables, 1x cable with SA 3pin plug. Requires 2x 12V deep cycle batteries. Please take note of connection polarity (+Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1).

Features:

  • Simulated sinewave inverter
  • Wide input voltage range
  • 12VDC or 24VDC available
  • Overload and short circuit protection
  • LCD display for comprehensive information

*Please take note of connection polarity (+Red , - Black). : Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on battery and the (-) on the unit. Place cable lug directly onto the battery terminal first, follow up with the washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and cable. Connect the positive cable first. Follow instructions in manual.

FAQ:

Does this product function like a ups?


Yes, it does function similar to a UPS, without the constant beeping.

Can I have everything connected to it and as soon as electricity goes then it’ll power up from batteries and when electricity resumes it’ll get charged automatically?

Yes, you have 220V outlets, and you can leave everything plugged in. When power goes out, everything continues to work without interruption.

Specifications
Product Code IVR-2400LBKS
MODEL IVR-2400LBKS
CAPACITY 2400VA/ 1440W
INPUT
Voltage 230 VAC
Acceptable Voltage Range 90-280 VAC
Frequency 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Efficiency (Peak) 85%
Transfer Time 20 ms typical
Waveform (Batt. Mode) Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC
Floating Charge Voltage 27.4 VDC ±2%
Low Battery Alarm Voltage 20.4Vdc ±2%
Shutdown Voltage 19.8Vdc ±2%
Overcharge Protection 30.0Vdc ±2%
Maximum Charge Current 10 A or 20 A (Selectable)
PROTECTION
Full Protection Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm) 300 x 360 x 88
Net Weight (kgs) 4.8
OPERATING ENVIRONMENT
Humidity 0 to 90% Relative Humidity(Non-condensing)
Operating Temperature 0 to 40
Storage Temperature -15 to 50
