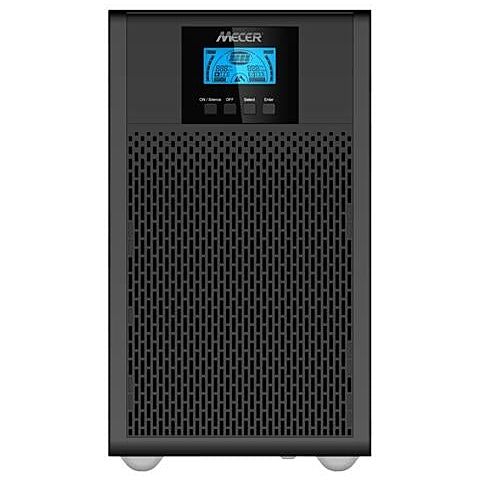

Mecer ME-3000-WPTV 3000VA / 2400W On-line Pure Sine Wave UPS with AVR, Monitoring Software + cable, Built-In Surge protection, 4x IEC C13 Socket, 1x SA plug, 6 x 12V 9Ah batteries, USB 2.0, RS232 *6 month warranty on battery
Specifications:
Model name
Model name ME-3000-WPTV
Power rating
VA/Watt 3000VA/2700W
E&#-1277;ciency
Double coversion mode 0.91
ECO mode Up to 98%
Input performance
Voltage range 176-300V 100% load, 100-176V derating to 40% load linearly
Rated frequency 50Hz/60Hz
Frequency range 40Hz-70Hz(45Hz-55Hz
54Hz-66Hz @ load>60%)
PF >0.99
THDI <5%
Input connection
Wiring/socket IEC C19
Output performance
Rated voltage 220/230/240V
Rated frequency 50Hz/60Hz
Maximum PF 0.9
Voltage accuracy ±1%
THDv <2% linear load
<6% non linear load
Transfer time 0ms(4ms @ line <->
bypass, 10ms @ ECO <->In- verter)
Crest Ratio max 3:1
Overload (line mode) 100%<load ≤ 105% continu- ous.
105%< load ≤ 130% for 60 second
130<load ≤ 150% for 10 seconds.
>150% for 0.3s.
Output connection
Wiring/socket 4 x IEC C13 + 1 x SA
Battery
Voltage 72VDC
Capacity(AH) 6 x 12V/9Ah
Charger
Maximum charging current 1.5A
Other working mode
CVCF Yes (derating to 60% load)
HMI (human-machine interface)
Display segment LCD
USB USB 2.0
RS232 yes
EPO yes
Intelligent slot yes
Network card yes, NMC mini card
Modbus card Optional, CMC/Modbus Long Card
Dry contactor card Optional, AS400 Long Card
Monitor software Winpower
Physical performance
Dimension(W*D*H)mm 190*393*327
Net Weight(KG) 22.7
IP protection level IP20
Environment
Operating temperature 0-40°C
Relative Humidity 0-95%
Operating Altitude 0~3000m(the load derating 1 % every up 100m@1000~3000m)
Acoustic Noise <41dB @ typical load with battery fully charged
Enviromental and safety
EMC Standard IEC/ EN 62040-2
Safety Standard IEC/ EN 62040-1
Accessory
Input power cable yes
Output power cable No
USB cable Optional
RS232 cable Optional
Manual Yes
