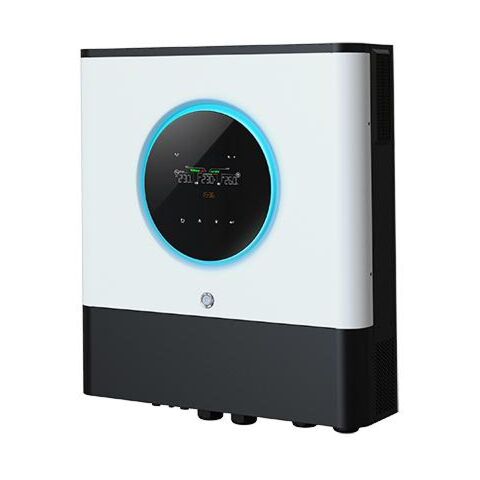

Mecer Axpert Maximum II 8kVA 8kW Pure Sine Wave Inverter - 48V DC - 8KW Solar

Mecer MX2 8K48V Axpert Maximum II 8kVA / 8kW Pure Sine Wave Inverter, 8000 VA / 8000 W rated power, 16000 VA surge power, 0.93 efficiency (Peak), 15 ms transfer time, 48 VDC battery voltage, Batteries not included, Battery not required to operate, 8000W Maximum PV Array power with Dual MPPT, 500 VDC Maximum PV Array open Circuit voltage, 6 units parallel capability

Overview:

Axpert MAX II - Customizable status LED ring with RGB lights
The powerful Axpert MAX II is equipped with a 150A MPPT solar charger, a newly upgraded 5-inch color LCD and touchable button. It can also access data and record it in the inverter to facilitate tracking of the inverters operating status.

Features:

Customizable status LED ring with RGB lights
Touchable button with large 5 colored LCD
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
Supports USB On-the-Go function
Datalog events stored in the inverter
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Compatible to Utility Mains or generator input
Built-in anti-dust kit
Built-in DC output for DC fan, LED bulb, router and so on.
Parallel operation with 6 units

Specifications:

Product Code RCT-AXPERT MX2 8K48V
MODEL Axpert MAX II 8000
Rated Power 8000 VA / 8000 W
Parallel Capability Yes, 6 units
INPUT
Voltage 230 VAC
Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliance)
Frequency Range 50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation 230 VAC ± 5%
Surge Power 16000 VA
Efficiency (Peak) 0.93
Transfer Time 15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure Sine Wave
No Load Power Consumption < 75W
DC Voltage (Optional) 12 VDC ± 5%, 100W
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type MPPT
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 8000W (4000W x 2)
MPPT Range @ Operating Voltage 90~450 VDC
Maximum Solar Charge Current 150A
Maximum AC Charge Current 120A
Maximum Charging Current 150A
PHYSICAL
Dimension, D X W X H (mm) 158.4 x 502.5 x 530.8
Net Weight (kgs) 20
Communication Port USB/RS232/RS485/Wifi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
STANDARD
Compliance Safety CE
