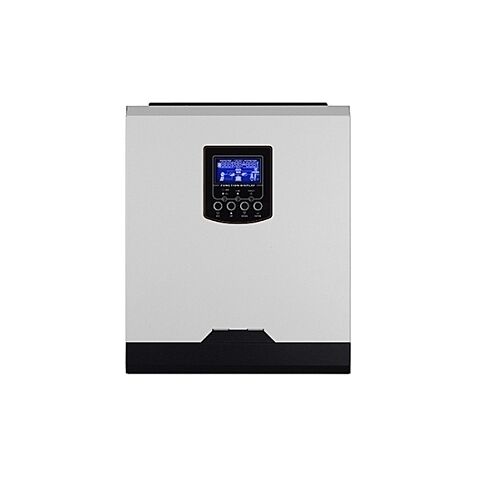

Mecer Axpert V 3kW Pure Sine Wave Inverter with 1200W PWM controller

Mecer Axpert V 3kW Pure Sine Wave Inverter with 1200W PWM controller

Mecer Axpert V 3kW Pure Sine Wave Inverter with 1200W PWM controller, Configurable AC/Solar Input priority via LCD setting, PWM Solar charger Type, 1200W Maximum PV Array power, 80 VDC Maximum PV Array open Circuit voltage, USB & RS-232 communication Port, 24 VDC battery voltage, 10ms transfer time

Overview:

Axpert V 1K/2K/3KVA/5KVA Cost-effective solar inverter
This is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

Pure sine wave solar inverter
Output power factor 1
Selectable high power charging current
Wide DC input range
Selectable input voltage range for home appliances and personal computers
Configurable AC/Solar input priority via LCD setting
Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Optional anti-dust kit

Specifications:

Product Code SOL-I-AX-3VP
MODEL Axpert VP3000-24
Rated Power 3000 VA / 3000 W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range 60/50 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Power 6000 VA
Efficiency (Peak) 90%~93%
Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type PWM
Maximum PV Array Open Circuit Voltage 80 VDC
Maximum PV Array Power 1200W
MPPT Range @ Operating Voltage N/A
Maximum Solar Charge Current 50A
Maximum AC Charge Current 25A
Maximum Charging Current 70A
PHYSICAL
Dimension, D X W X H (mm) 100 x 285 x 334
Net Weight (kgs) 6.3
Communication Port USB, RS-232
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
