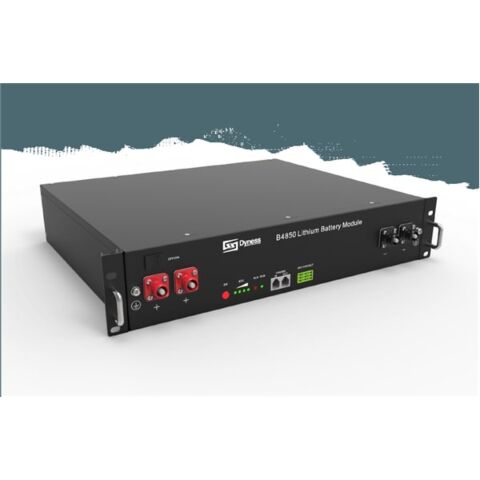

The Dyness battery B4850 module is widely used in energy storage and electrical products. Household Energy Storage systems; Centralised power station energy storage systems
Features:
Intelligent Management:
Dyness is equipped with intelligent BMS for each battery pack to manage modules effectively.
Compared with the traditional module, B4850 can meet the capacity storage and greatly enhance the cycle life.
Safe:
Safe lithium-ion phosphate battery cell
Compact size ultralight module
Intelligent:
Each module is equipped with an independent BMS system
Specifications:
Specifications
Product Code
SOL-B-L-D3
Nominal Energy
3.552kWh
Nominal Capacity
74Ah
Nominal Voltage
48V
Max. Continuous Discharge Current
50A
Max. Continuous Charge Current
50A
Charging Cut-Off Vol
54V
Discharging End-Off Vol
40.5V
Net Weight
30kg
Dimensions (W*D*H)
480*360*133.5mm
Protection Level
IP20
Calendar Life
6000 Cycles
Charging Temperature Range
0~50ºC
Discharging Temperature Range
-20~50ºC
Communication
CAN / RS485
Configuration
up to 142kWh total energy, 40 modules parallel at most
