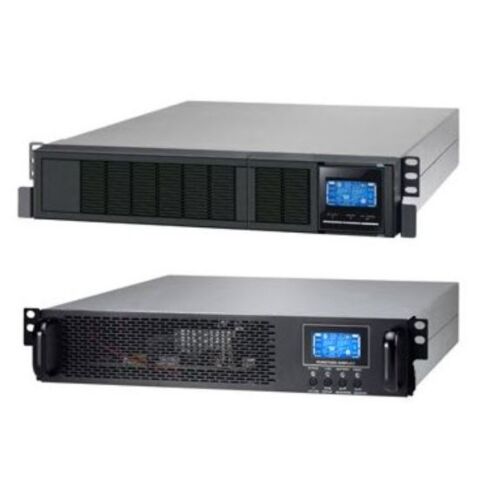

Mecer Winner PRO 1000VA / 800W 2U ON-LINE RACKMOUNT UPS PF 0.8

Mecer 1000VA / 800W 2U ON-LINE SINE WAVE Rackmountable UPS (with Monitoring Software) -Black. 12 V / 9 Ah batteries x2. Voltronic Power Winner Pro Online pure sine wave UPS.

Specifications:

CAPACITY 1000 VA / 800 W
PHASE Single phase with ground
INPUT
Input Voltage Range 55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%)
Nominal Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range 40Hz ~70 Hz
Power Factor >= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation ± 1%
Output Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Transfer Time : AC Mode to Battery Mode Zero
Transfer Time : Inverter to Bypass 4 ms (Typical)
Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
Current Crest Ratio 3::1
Harmonic Distortion <= 3% THD (Linear Load); <= 6% THD (Non-linear Load)
Frequency Range (Synchronized Range) 47~53 Hz or 57~63 Hz
EFFICIENCY
Battery Mode 0.83
AC Mode 0.88
BATTERY
Long-run Model : Battery Type Depending on the capacity of external batteries
Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable)
Long-run Model : Charging Voltage 27.4 VDC ± 1%, 41.0 VDC ± 1%
Long-run Model : Numbers 2, 3
Standard Model : Battery Type 12 V / 9 AH
Standard Model : Charging Current (max.) 1A
Standard Model : Charging Voltage 27.4 VDC ± 1%
Standard Model : Numbers 2
Standard Model : Typical Recharge Time 4 hours recover to 90% capacity
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
ENVIRONMENT
Operating Humidity 20~90% RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm) 310 x 438 x 88[2U]
Standard Model : Net Weight (kgs) 12
Long-run Model : Dimension, D x W x H (mm) 310 x 438 x 88[2U]
Long-run Model : Net Weight (kgs) 9
MANAGEMENT
Optional SNMP Power management from SNMP manager and web browser
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
