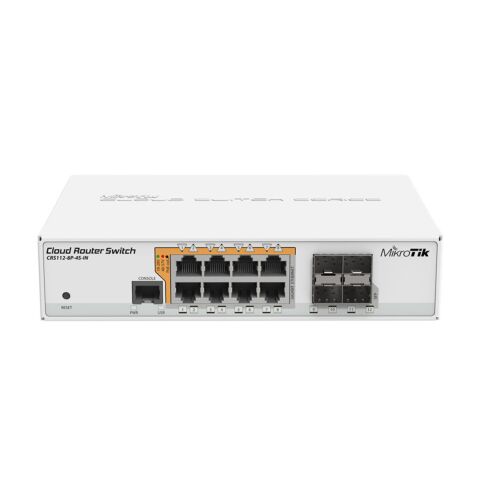

MikroTik's RB-CRS1128P is an eight port Gigabit PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fibre connectivity options to support uplinks of up to 1 Gbps.
The RB-CRS1128P is equipped with 12 independent switching ports. 28V 3.4A power supply is already included in the box. There is a secondary DC jack on the back of the enclosure that supports 48-57V power supply (not included).
The RB-CRS1128P can power 802.3af/at devices if 48-57V DC input is used (unit will automatically detect and provide correct power to devices). The maximum current is 1A per port if the input voltage is 18-28V, 450mA if 48-57V. Total limit is 2.8A@24V and 1.4A@48-57V.
Specifications
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop & Rack-Mount
Operating System: RouterOS (Level 5 Licence)
Operating Temperature: -20°C to 60°C
PoE Input: None
PoE Output: 18V-28V (Passive PoE) or 48V-57V (802.3af/at)
Power Input: 28V 3.4A Power Supply (Included)
Processor: 1 Core 400MHz QCA8511
Serial Interface:1x RJ45 Serial Port
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 18V-28V ; 48V-57V
System Memory: 128MB
USB Ports: None
Other: None
Dimensions: 200 x 143 x 44mm
