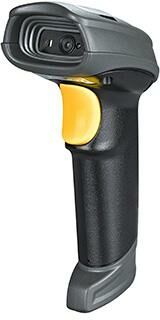

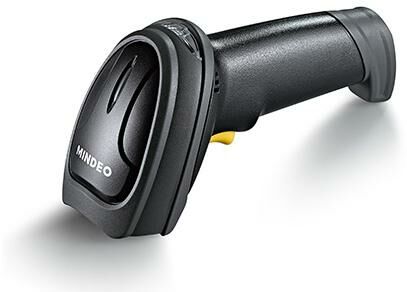

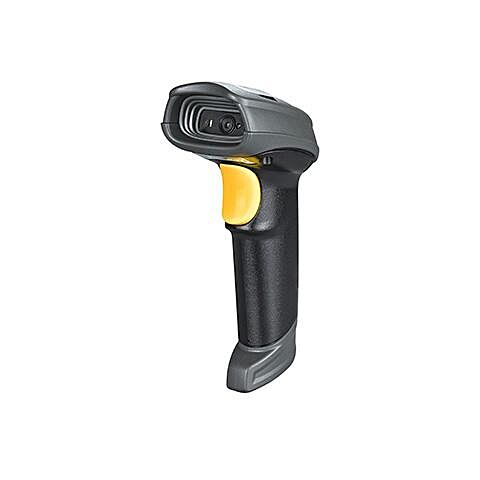

Mindeo MD6600 2D handheld image Scanner, IP52 stand, RJ-45 phone jack connector, Tempered Glass exit Window material, 1280x800 pixels image size, All common 1D/2D paper barcodes and Mobile barcodes
Overview:
High performance in decoding barcode
Stylish and ergonomic design
Plug-and-play interfaces enable the scanner to be used with different host devices
Image auto-induction technology supports free switch between handheld and auto-detection modes
Soft white auxiliary lighting and green aimer deliver comfortable and convenient scanning experience
Specifications:
Product Code MD6600
PHYSICAL CHARACTERISTICS
Dimensions 90 mm x 62.8 mm x 153 mm
Weight 132 g (without cable)
Cable Straight 2.0 m
Connector Type RJ-45 phone jack connector
Case Material PC+TPU
Exit Window Material Tempered glass
Host System Interfaces RS-232, or USB Keyboard, USB virtual COM
Indicator Interface Beeper and LED
Trigger Mode Hand-held, Auto-Detect
Programming Method Scanning special barcodes in sequence
Firmware Upgrade Online
ELECTRICAL CHARACTERISTICS
Input Voltage 5.0 ± 0.25 VDC
Current Standby: 160 mA, Working: 300 mA (Max: 480 mA)
PERFORMANCE CHARACTERISTICS
CPU 32-bit ARM Microprocessor
Scan Pattern Image
Image Size 1280 x 800 pixels
Light Source Illumination : 5000 K, white LED, Aiming: 525 nm peak wavelength, green LED
Speed reading ( Motion Tolerance ) : Minimum 5 IPS
Field of View Horizontal: 41°, Vertical: 28°
Scanning Angles ±70°, ±75°, 360°(skew, pitch, roll)
Print Contrast 20% minimum reflectance difference
Decoding Capability All common 1D/2D paper barcodes and mobile barcodes
Minimum Resolution HD : 1D Code 39 : 3 mil
SR : 1D Code 39 : 4 mil
