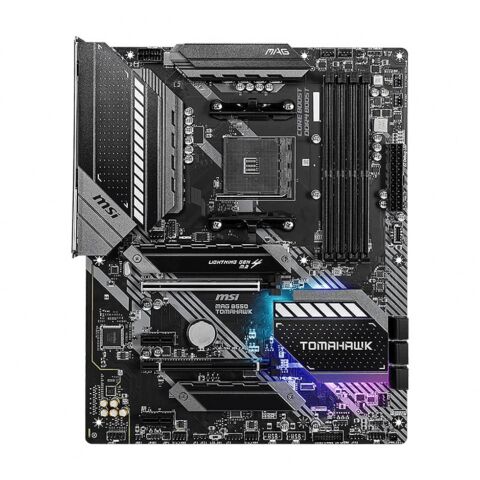

MSI B550 TOMAHAWK AMD AM4 ATX Gaming Motherboard

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. With more cores� processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

FEATURES:

• Support for 3rd Gen AMD Ryzen� Processors and future AMD Ryzen� processors with BIOS update
• Supports DDR4 Memory, up to 5100+(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
• Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
• Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
• Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire�

SPECIFICATIONS:

• Socket: AM4
• CPU (Max Support): RYZEN 9
• Chipset: AMD B550 Chipset
• DDR4 Memory: 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 2
• PCI-E x1: 2
• SATAIII: 6
• M.2 Slot: 2
• RAID: 0/1/10
• LAN: 1x Realtek� RTL8125B 2.5G LAN + 1x Realtek� RTL8111H 1G LAN
• USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2
• Audio ports (Rear): 5+ Optical S/PDIF (Realtek� ALC1200 Codec)
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• CrossFire: Yes
• Operating System: Support for Windows� 10 64-bit

WHAT'S IN THE BOX:

• MSI MAG B550 Tomahawk AM4 ATX Motherboard - Black x1
• SATA cables x2
• Driver DVD x1
• User Manual x1
• Quick Install Guide x1
