Newland N7 Cachalot Pro Mobile Computer with 4 inch Touch Screen with 29 keys

Newland N7 Cachalot Pro Mobile Computer with 4" Touch Screen, 29 keys keyboard, 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS

Overview:

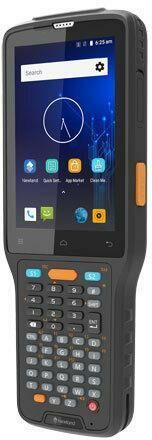

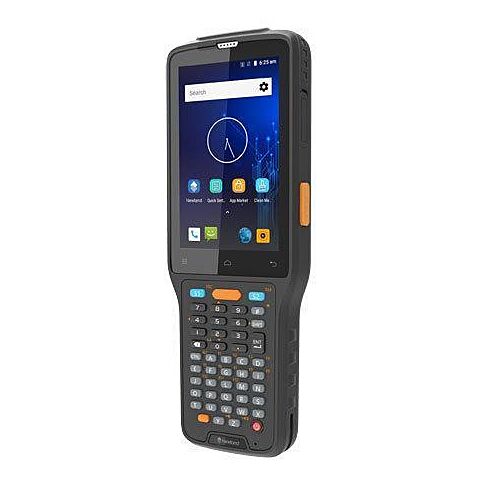

N7 Cachalot Pro
The N7 Cachalot Pro takes the Newland Pro Series into rugged warehouse and logistics applications. This Mobile Computer adds processing speed, fast-roaming wireless connections, higher drop- and IP ratings and added flexibility through a choice of 3 keyboard layouts.
1D & 2D
Android 10
IP65
Megapixel
GMS
Laser aimer
4.0" screen
Touchscreen
USB-C
5100 mAh
Micro SD
Camera
1.8M drop
4G
WIFI Dual Band
Bluetooth 4.2
NFC
NFC
GPS
GPRS
Ndevor
Acuscan
Features:

Newlands best screen technology.
The 4" HD screen has a high transparency and low reflectivity to give crystal clear images, even in sunlight. The touchscreen responds when wearing gloves and maintains sensitivity even when wet. For added protection, Gorilla Glass 3 makes the N7 Cachalot Pro tougher and more damage resistant, making the device the perfect companion in rough environments.

Android Enterprise Recommended (AER).
The N7 Cachalot Pro carries Googles AER seal of approval, signaling it keeps pace with performance and security upgrades to its operating system and core functionality. This label, in combination with Newlands free MDM Ndevor, enables clients to maintain secure visibility and control over their devices regardless of location.

Fast charging, high-capacity and hot-swappable battery.
The N7 Cachalot Pro supports fast charging for its 5100mAh battery and is hot-swappable. This keeps your program running and your wifi connected, even when taking the battery fully out to exchange it with a new one.

Near and far scanning, acuscan and multi-read mode
The N7 Cachalot Pro offers a choice of megapixel 2D scan engine. The Standard-range version with acuscan provides standard, accurate scanning on codes close-up or smaller items. Alternatively, the Mid-range version is capable of reading codes on boxes and pallets from further away. Both scanners offer Newlands multi-read mode.

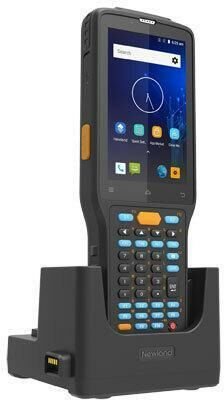

Daisy chain charging.
The single cradle is designed to link to up to 3 additional cradles (4 in total), to limit the number of power outlets needed to charge units.

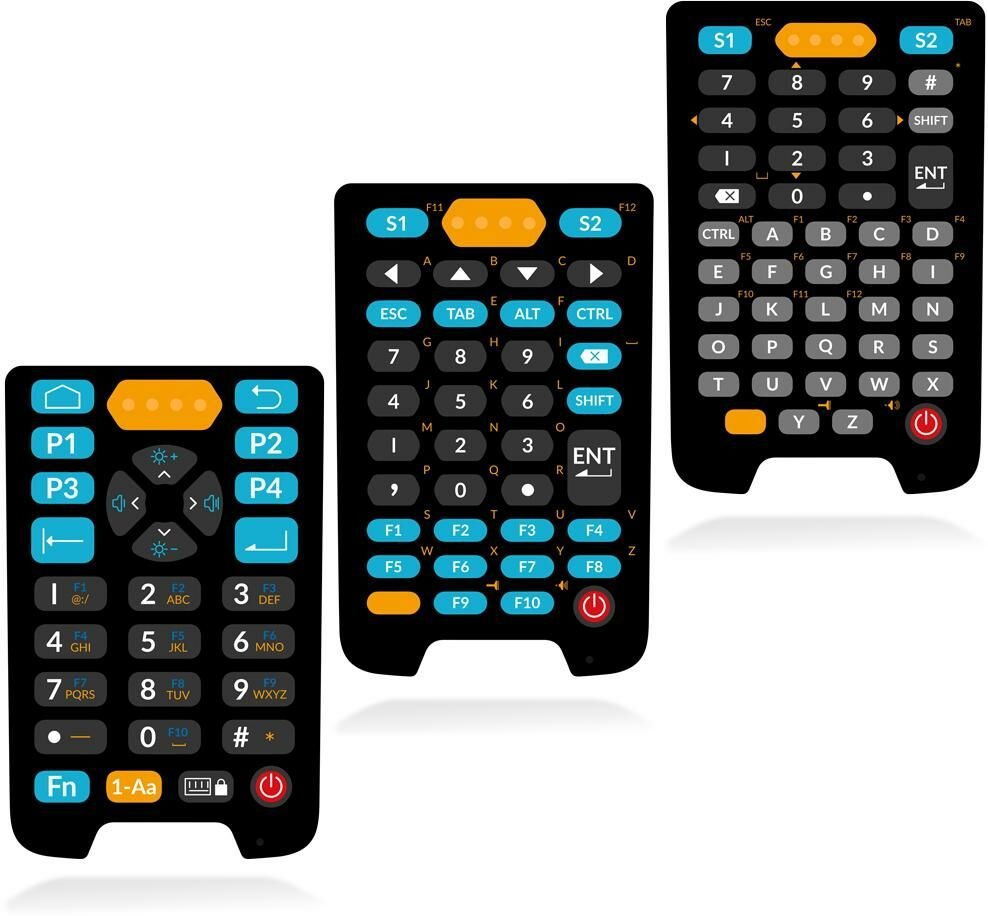

The keys to unlock applications.
The N7 Cachalot Pro is designed to allow tailoring to many different applications for which a physical keyboard is still preferred. It offers the flexibility to choose between a 29, 38 and 47 keypad option (not including side scan buttons). Each of the three configurations are back-lit for high visibility in dark work environments.

Seen and heard.
The applications most suited to the N7 Cachalot Pro are often in noisy environments. To accommodate for this, sound notifications can be adjusted to reach up to 90 decimals. When sound is not wanted, or instead, enough on its own, the device has vibration and a LED color feedback.

Specifications:

Performance
Operating System Android 10 - GMS, Android Enterprise Recommended (AER)
Processor Qualcomm Snapdragon 1.8GHz main frequency
Memory RAM WiFi-only: 3GB. 4G: 4GB
Memory Flash WiFi-only: 32GB. 4G: 64GB
Memory Storage Expansion (max.) Micro SD/TF card (max. 128 GB)
Depth of Field EAN 13 (13mil) SR: 40-480mm, MR: 130-705mm
Depth of Field CODE 39 (5mil) SR: 80-350mm, MR: 200-575mm
Depth of Field PDF417 (6.67mil) SR: 60-320mm, MR: 175-550mm
Depth of Field Data Matrix (10mil) SR: 55-355mm, MR: 185-520mm
Depth of Field QR (15mil) SR: 50-400mm, MR: 195-550mm
Data Capture
1D All major 1D symbologies, including Code 128, Code 49, Code 16K, (GS1128) UCC EAN-128, AIM-128, EAN-8, EAN-13, UPC E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, Codabar, Code93, Code 11, Plessey, MSI Plessey, RSS.
2D All major 2D symbologies, including Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.
Physical
Dimensions (mm) 200(H) x 70(W) x 29(0) mm (pistol grip 58mm)
Weight 360g (including battery)
Display 4.0" WVGA I PS screen with Gorilla Glass, resolution 480x800, supports input with gloves
Keypad 29, 38 or 47 physical buttons, white backlight function
Buttons Two scan buttons (left/right), three touch navigation keys
Interfaces Quick charging (QC) 3.0, Type-C port, 9V/2A
Battery Type 3.8V, 5100 mAh, removable
Expected Battery Life Scanning:> 15 hours of continuous operations, standby: 500 hours
Notifications Vibrator, speaker, and mulit-color LED
Power Supply Input AC 100~240V, 50~60Hz
Power Supply Output Type-C 9V/2A, 15V/l.2A
Sensors Gravity Sensor, Hall Switch
Expansion Slot MicroSD/TF card (max. 128GB)
Camera 13 Megapixels, PDAF, with LED flashlight
SIM Nano+Nano or Nano+TF
Environmental
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±8 KV (direct discharge), ±15 KV (air discharge)
Drop 1.8m
IP Rating IP65
Wireless
WWAN RADIO 2G: GSM: 850/900/1800/1900MHz, 3G: WCDMA: Bl/B2/BS/B7/B8/ B20/B28a&b, CDMA lx/EVDO: BCO, 4G: FDD-LTE: Bl/B2/B3/BS/B7/B8/B20/B28a&b, TDD-LTE, B38/B39/B40/B41 (100M)
WLAN RADIO 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, support 2.4G and 5G dual frequency, Roaming: Super Fast Roaming
WPAN RADIO Dual mode, Bluetooth 4.2+LE (backward compatible)
RFID NFC: 13.36MHz IS014443A/B, Ml FARE, Felica, NFC Forum Tags
GPS GPS-A, GPS-BeiDou, GLONASS
Accessories
Standard Hand strap, USB cable, battery and multi-plug adapter (supports fast charging)

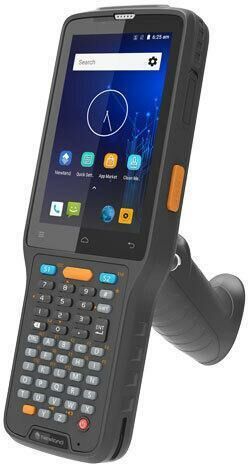

Optional Single cradle, pistol Grip, 4-slot battery charger, screen protection film
Software
MDM (certified) Ndevor, SOTI, Airwatch
Terminal Emulation (compatible) StayLinked, Ivanti Velocity
Configuration Tools Ndevor
Certifications
Hardware CE-RED, FCC, BIS, RoHS2.0, REACH, AER, SOTI, UN38.3, IEC62471, Laser Safety: IEC60825
